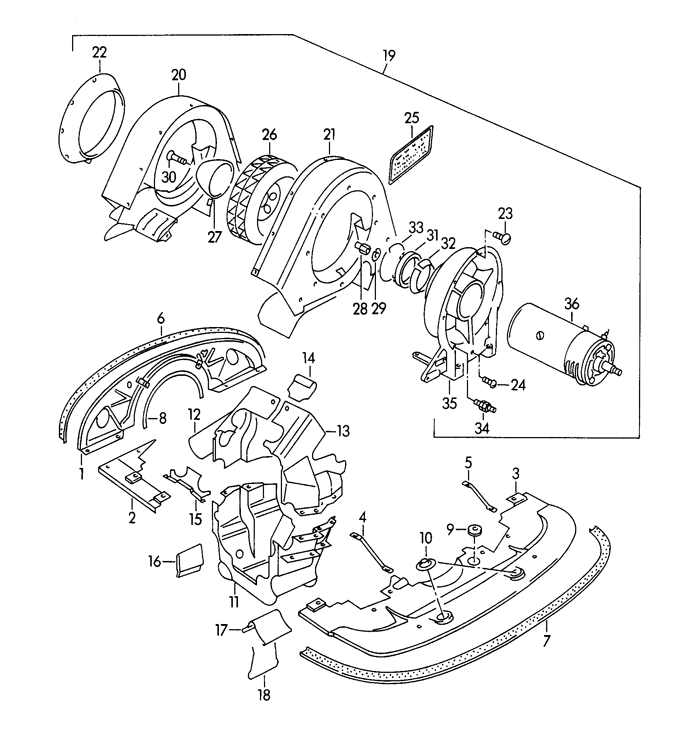

CARRERA, 1500 GS/GT air cooling

POS Part Number Description Qty. Needed Price Model/Option Info
1 54706301 engine cover(FRONT) 1 -
2 engine cover(DRIVER SIDE) 1 -
(2) engine cover(PASSENGER SIDE) 1 -
3 54706310 engine cover(REAR) 1 -
4 54706321 strut(DRIVER SIDE) 1 -
5 54706322 strut(PASSENGER SIDE) 1 -
- hexagon-head bolt m 6 x 15 6 -
- 90007501000 hexagon-head bolt m 6 x 12 2 $1.10
- 90002701302 lock ring b 6 8 -
- N02214812 hexagon nut m 6 2 $1.74
- 9000760100B hexagon nut m 6 2 $1.06
6 54706306 gasket upper 1 -
7 54706308 rubber moulding 1925 mm long 1 $39.50
8 547063250 sealing rubber 1 -
9 99970204050 rubber sleeve 1 $34.65
10 111905449A rubber cap 2 $1.25
11 lower part air duct(DRIVER SIDE) 1 -
(11) lower part air duct(PASSENGER SIDE) 1 -
12 cover plate with connecting piece(DRIVER SIDE) 1 -
(12) cover plate with connecting piece(PASSENGER SIDE) 1 -
13 cover plate(REAR, DRIVER SIDE) 1 -
(13) cover plate(REAR, PASSENGER SIDE) 1 -
14 filler plate(DRIVER SIDE) 1 -
(14) filler plate(PASSENGER SIDE) 1 -
15 54706504 intake manifold cover plate 2 -
16 54706516 baffle plate upper 2 -
17 54706517 baffle plate lower 2 -
18 54706518 spring clip 2 -
- spring washer b 6 18 -
- 90001501302 oval-head sheetmetal screw m 6 x 10 18 $7.15
- hexagon-head bolt m 6 x 15 20 -
- spring washer b 6 20 -
19 5470601710 air guide housing with dc generator complete 1 -
20 air duct(DRIVER SIDE) 1 -
21 air duct(PASSENGER SIDE) 1 -
22 54706012 insert ring complete 1 -
23 half-round screw m 6 x 15 7 -
24 90001601302 half-round screw m 6 x 28 1 -
- 90001501302 oval-head screw m 6 x 10 27 $7.15
- spring washer b 6 35 -
25 54700650100 decal label engine specifications 1 -
26 54706021 impeller 1 -
27 54706209 protective cap 1 -
28 54706210 hexagon nut 1 -
29 90003000100 tab washer 13 1 -
30 90001901102 rais. counters. h. tap. s. m 6 x 30 1 -
31 54701110 retainer 1 -
32 54701111 cone ring 1 -
33 54701120 circlip 1 -
- spring washer b 8 4 -
- 50208310 hexagon nut 4 $2.59
34 54708103 retaining pivot 1 -
35 54701109 bracket 1 -
36 see group 9/01/05 * -
