brake

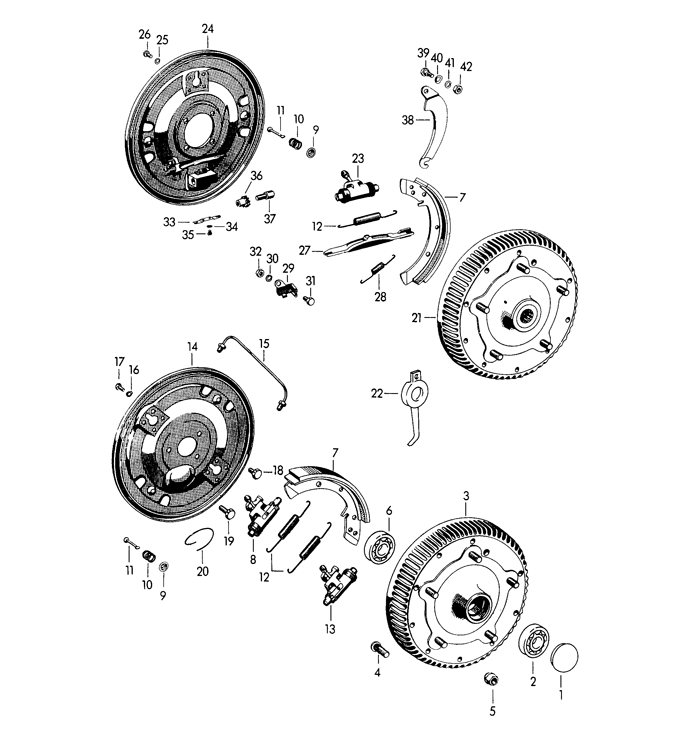

POS Part Number Description Qty. Needed Price Model/Option Info
1 35641453 cap(DRIVER SIDE) 1 -
(1) 35641453 cap(PASSENGER SIDE) 1 -
2 90005300500 ball bearing outer 2 $16.92
3 35641022 brake drum(FRONT) 2 -
(3) 64442045 brake drum brake 60 mm(FRONT) 2 -
4 35634132 wheel bolt(FRONT, REAR) 40 $11.61
(4) 35633190200 wheel bolt oversize X -
5 N0201121 ball seat nut a 14 x 1,5 20 $1.75
6 90005300600 ball bearing inner 2 $20.19
(7) 69535131120 brake shoe(FRONT, REAR) 8 - 356
7 69535131120 brake shoe with pad 40 mm(FRONT, REAR) 8 - 356 A/540.1
7 69535103302 brake shoe with pad 40 mm(FRONT, REAR) 8 - 356 A/540.1
7 695351033CX brake shoe exchange with pad 40 mm(FRONT, REAR) X - 356 A/540.1
7 695351033BX brake shoe oversize exchange with pad 40 mm(FRONT, REAR) X - 356 A/540.1
(7) 69535103500 brake shoe with pad 60 mm complete(FRONT, DRIVER SIDE) 2 -
(7) 69535103600 brake shoe with pad 60 mm complete(FRONT, PASSENGER SIDE) 2 -
- bolt for brake shoe brake 60 mm 8 -
(8) 35642301 wheel brake cylinder 1 - 356
(8) 35642125 wheel brake cylinder upper(DRIVER SIDE) 1 - 356
(8) 35642126 wheel brake cylinder upper(PASSENGER SIDE) 1 - 356
8 69535151100 wheel brake cylinder $ 19,05 mm upper(DRIVER SIDE) 1 $58.30 356 A/540.1
(8) 69535151110 wheel brake cylinder $ 19,05 mm upper brake 60 mm(FRONT, DRIVER SIDE) 1 -
(8) 69535151200 wheel brake cylinder $ 19,05 mm upper(PASSENGER SIDE) 1 $58.30 356 A/540.1
(8) 69535151210 wheel brake cylinder $ 19,05 mm upper brake 60 mm(FRONT, PASSENGER SIDE) 1 -
9 251609289 concave washer 8 $2.41
(10) 64442208 compression spring 8 $1.74 356
10 64442208 compression spring 8 $1.74 356 A/540.1
11 35642169 roll pin 8 $9.49
12 35642168 return spring 6 $4.62
(13) 35642302 wheel brake cylinder 1 - 356
13 69535151300 wheel brake cylinder $ 19,05 mm lower(FRONT, DRIVER SIDE) 1 - 356 A/540.1
(13) 69535151310 wheel brake cylinder $ 19,05 mm lower brake 60 mm(FRONT, DRIVER SIDE) 1 -
(13) 69535151400 wheel brake cylinder $ 19,05 mm lower(FRONT, PASSENGER SIDE) 1 -
(13) 69535151410 wheel brake cylinder $ 19,05 mm lower brake 60 mm(FRONT, PASSENGER SIDE) 1 -
- 64442127 intermediate plate for wheel brake cylinder brake 60 mm 1 -
(14) brake mounting plate(FRONT, PASSENGER SIDE) 1 - 356
14 35642228 brake mounting plate(FRONT, PASSENGER SIDE) 1 - 356 A/540.1
(14) brake mounting plate(FRONT, DRIVER SIDE) 1 - 356
(14) 35642227 brake mounting plate(FRONT, DRIVER SIDE) 1 - 356 A/540.1
(14) 64442227 brake mounting plate non vented brake 60 mm(FRONT, DRIVER SIDE) 1 -
(14) 64442228 brake mounting plate non vented brake 60 mm(FRONT, PASSENGER SIDE) 1 -
(14) 64435101110 brake mounting plate vented brake 60 mm(FRONT, DRIVER SIDE) 1 -
(14) 64435101210 brake mounting plate vented brake 60 mm(FRONT, DRIVER SIDE) 1 -
15 35642184 connecting tube 2 $12.19
16 90002701302 lock ring b 6 16 -
(17) hexagon-head bolt m 6 x 15 16 - 356
17 99907200501 hexagon-head bolt m 6 x 12 16 $1.06 356 A/540.1
18 90007503502 hexagon-head bolt m 10 x 15 sk 4 -
19 hexagon-head bolt 2 -
20 locking wire 1 -
21 64433106100 brake drum(REAR) 2 - 356
(21) 64433106100 brake drum(REAR) 2 - 356 A/540.1
(21) 64433106110 brake drum brake 40 mm(REAR) 2 -
- 35633190300 wheel bolt long standard dimension brake 40 mm 10 $14.84
- 35633190300 wheel bolt long oversize brake 40 mm 10 $14.84
- 55042121 spacer brake 40 mm 10 -
22 35634031 drip pan 2 -
- 90007507803 hexagon-head bolt m 8 x 15 2 $1.50
(23) 64442310 wheel brake cylinder $ 20,64 mm g >> 18 604 2 -
23 64435251301 wheel brake cylinder g 18 605 >> 2 $59.00
24 35642220 brake mounting plate(REAR, PASSENGER SIDE) 1 -
(24) 35642219 brake mounting plate(REAR, DRIVER SIDE) 1 -
(24) 64435201110 brake mounting plate brake 40 mm(REAR, DRIVER SIDE) 1 -
(24) 64435201210 brake mounting plate brake 40 mm(REAR, PASSENGER SIDE) 1 -
- 69535131120 brake shoe with pad brake 40 mm 4 -
- 69535103302 brake shoe with pad brake 40 mm 4 -
25 90002701302 lock ring b 6 8 -
26 99907200501 hexagon-head bolt m 6 x 12 8 $1.06
27 35642197 push rod(DRIVER SIDE) 1 -
(27) 35642198 push rod(PASSENGER SIDE) 1 -
28 35642172 tension spring 4 $4.91
29 35642181 support(REAR, DRIVER SIDE) 1 -
(29) 35642182 support(REAR, PASSENGER SIDE) 1 -
30 90002701502 lock ring b 8 2 $1.10
30 90002701503 lock ring b 8 2 $1.89
31 90007507803 hexagon-head bolt m 8 x 15 2 $1.50
32 90007606402 hexagon nut m 8 2 $1.00
33 35642174 leaf spring 2 -
34 lock ring b 3 4 -
35 90001600101 half-round screw am 3 x 4 4 $1.00
36 91135209800 adjusting nut 8 -
37 35642114 adjusting screw 8 $29.11
38 35642147 lever(REAR, DRIVER SIDE) 1 -
(38) 35642148 lever(REAR, PASSENGER SIDE) 1 $98.92
39 35642207 bearing pin 2 $17.99
40 35642209 spring washer $ 10,5/18 mm 2 -
41 90002701502 lock ring b 8 2 $1.10
41 90002701503 lock ring b 8 2 $1.89
42 90007606402 hexagon nut m 8 2 $1.00
- 55042336 union brake 60 mm 4 -
- N0138083 sealing ring a 10 x 16 brake 60 mm 4 $1.67
- hexagon-head bolt m 6 x 22 brake 60 mm 16 -
- 90002700403 lock ring a 6 brake 60 mm 16 $1.00
