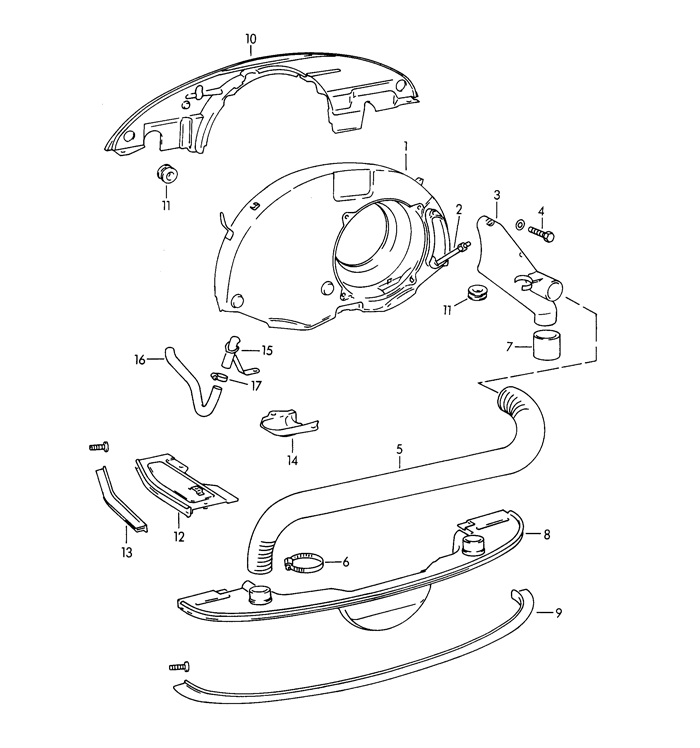

356 B/C air cooling heating new design parts not listed see group 1/05/00

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1	61610601313	suction housing	1	$338.21
2	61621127000	stud	1	$2.93
3	61621102902	adapter	1	$399.11
(3)	61621102902	intake manifold	1	$399.11
4	90007401502	hexagon-head bolt m 6 x 30	1	$1.40
4	90007401503	hexagon-head bolt m 6 x 30	1	$1.50
5	64457297100	heater hose	1	$16.55
6	99951234902	hose clamp	2	$2.00
7	61621129600	connecting hose	1	$17.49
8	61610608501	cover plate engine(REAR)	1	-
9	61610689600	rubber moulding	1	$40.61
10	61610608200	cover plate engine(FRONT)	1	-
11	99970204250	grommet	3	-
12	36906140	cover plate lateral(DRIVER SIDE)	1	$81.29
(12)	36906141	cover plate lateral(PASSENGER SIDE)	1	$79.61
13	61610689700	rubber moulding	2	$7.15
14	61610683100	cover plate for fuel pump	1	$35.20
15	61610607803	intake manifold for carburettor preheating	2	$147.29	1600 S90
(15)	61610607803	adapter for carburettor preheating	2	$147.29	1600 /S
16	61610779100	breather hose	2	$17.49
17	N0241151	hose clamp	X	-
-	54672203	decal label valve clearance - biral - cylinder	1	$10.60	1600 SC
