| POS |
Part Number |
Description |
Qty. Needed |
Price |
Model/Option Info |
|

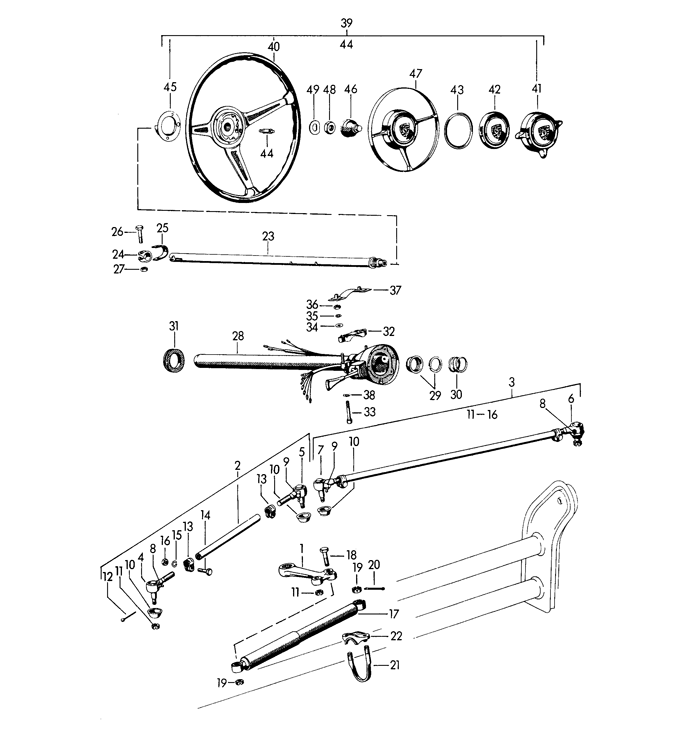

1
|
64434730102
|
steering arm(LEFTHAND DRIVE) |
1 |
- |
|
|
(1)
|
64434730202
|
steering arm(PASSENGER SIDE, L) |
1 |
- |
|
|
2
|
64434731101
|
tie rod(LEFTHAND DRIVE, LEFT) |
1 |
$273.90 |
|
|
(2)
|
64434731301
|
tie rod(PASSENGER SIDE, L DRIVER SIDE) |
1 |
- |
|
|
3
|
64434731201
|
tie rod(LEFTHAND DRIVE, PASSENGER SIDE) |
1 |
$8.65 |
|
|
(3)
|
64434731401
|
tie rod(PASSENGER SIDE, L PASSENGER SIDE) |
1 |
- |
|
|
4
|
64434731101
|
ball joint(LEFTHAND DRIVE) |
1 |
$273.90 |
|
|
(4)
|
64434731101
|
ball joint(PASSENGER SIDE, L) |
1 |
$273.90 |
|
|
5
|
64434731101
|
ball joint(LEFTHAND DRIVE) |
1 |
$273.90 |
|
|
(5)
|
64434732302
|
ball joint(PASSENGER SIDE, L) |
1 |
- |
|
|
6
|
64434731201
|
ball joint(LEFTHAND DRIVE) |
1 |
$8.65 |
|
|
(6)
|
64434731101
|
ball joint(PASSENGER SIDE, L) |
1 |
$273.90 |
|
|
7
|
64434731201
|
ball joint(LEFTHAND DRIVE) |
1 |
$8.65 |
|
|
(7)
|
64434731101
|
ball joint(PASSENGER SIDE, L) |
1 |
$273.90 |
|
|
8
|
90016300102
|
nipple a 6 |
2 |
$1.10 |
|
|
9
|
90016300402
|
nipple c 6 |
2 |
- |
|
|
10
|
35647314
|
sealing bellows |
4 |
$20.30 |
|
|
11
|
N0112101
|
castle nut m 10 x 1 |
4 |
$4.73 |
|
|
12
|
90002101300
|
cotter pin 2 x 25 |
4 |
$1.00 |
|
|
13
|
64447313
|
clip |
4 |
$45.82 |
|
|
14
|
90008200100
|
hexagon-head bolt m 8 x 1 x 30 |
4 |
- |
|
|
15
|
90002701502
|
lock ring b 8 |
4 |
$1.10 |
|
|
15
|
90002701503
|
lock ring b 8 |
4 |
$1.89 |
|
|
16
|
N0110184
|
hexagon nut m 8 x 1 |
4 |
$1.00 |
|
|
17
|
PCG34750100
|
damper |
1 |
$35.00 |
|
|
18
|
90008201002
|
hexagon-head bolt m 10 x 1,5 x 52 s |
1 |
- |
|
|
19
|
N0112101
|
castle nut m 10 x 1 |
3 |
$4.73 |
|
|
20
|
90002101300
|
cotter pin 2 x 25 |
3 |
$1.00 |
|
|
21
|
64447303
|
clamp |
1 |
- |
356 B-T5 |
|
(21)
|
69534705700
|
clamp |
1 |
- |
356 B-T6 |
|
22
|
64447302
|
tensioning plate |
1 |
- |
|
|
23
|
69534760101
|
steering shaft |
1 |
- |
356 B |
|
(23)
|
69534760102
|
steering shaft not for - carrera 2000- |
1 |
- |
356 C |
|
(23)
|
75634760100
|
steering shaft |
1 |
- |
CARRERA |
|
|
|
|
|
- |
ABARTH |
|
|
|
|
|
- |
692/3/3A |
|
24
|
64434765100
|
pipe clamp |
1 |
- |
|
|
25
|
64434768100
|
tab washer |
1 |
$7.22 |
|
|
26
|
N0103404
|
hexagon-head bolt |
1 |
$1.75 |
|
|
|
|
m 8 x 40 |
1 |
- |
|
|
27
|
90007606402
|
hexagon nut |
1 |
$1.00 |
|
|
28
|
64434700705
|
steering outer tube(LEFTHAND DRIVE) |
1 |
- |
356 B |
|
(28)
|
64434700905
|
steering outer tube(PASSENGER SIDE, L) |
1 |
- |
|
|
(28)
|
64434700805
|
steering outer tube 30 mm(LEFTHAND DRIVE) |
1 |
- |
356 B:M |
|
(28)
|
64434700906
|
steering outer tube 60 mm for 644.347.801.07 |
1 |
- |
356 C |
|
(28)
|
75634770100
|
steering outer tube |
1 |
- |
CARRERA |
|
|
|
|
|
- |
ABARTH |
|
|
|
|
|
- |
692/3/3A |
|
29
|
91434771100
|
bearing |
1 |
$320.77 |
|
|
-
|
69534772500
|
support ring |
1 |
$27.45 |
|
|
30
|
91434771300
|
compression spring |
1 |
$3.05 |
|
|
31
|
64434793100
|
bearing |
1 |
$9.66 |
|
|
32
|
64434775305
|
bearing shell |
1 |
- |
ROADSTER |
|
33
|
90006701501
|
hexagon socket head bolt m 6 x 45 |
2 |
- |
ROADSTER |
|
(33)
|
90006701302
|
pan-head screw m 6 x 35 m 6 x 35 |
2 |
- |
|
|
34
|
90015100609
|
washer a 6,4 |
2 |
$1.10 |
|
|
|
|
f >> 111 930 |
|
- |
COUPE |
|
|
|
|
|
- |
-REUTTER- |
|
|
|
f >> 153 590 |
|
- |
CABRIO |
|
|
|
|
|
- |
HARDTOP |
|
|
|
f >> 80 039 |
|
- |
ROADSTER |
|
|
|
f >> 111 930 |
|
- |
COUPE |
|
|
|
|
|
- |
-REUTTER- |
|
|
|
f >> 153 590 |
|
- |
CABRIO |
|
|
|
|
|
- |
HARDTOP |
|
|
|
f >> 80 039 |
|
- |
ROADSTER |
|
35
|
90002700403
|
lock ring a 6 |
2 |
$1.00 |
|
|
|
|
f >> 111 930 |
|
- |
COUPE |
|
|
|
|
|
- |
-REUTTER- |
|
|
|
f >> 153 590 |
|
- |
CABRIO |
|
|
|
|
|
- |
HARDTOP |
|
|
|
f >> 80 039 |
|
- |
ROADSTER |
|
36
|
N02214812
|
hexagon nut m 6 |
2 |
$1.74 |
|
|
|
|
f >> 111 930 |
|
- |
COUPE |
|
|
|
|
|
- |
-REUTTER- |
|
|
|
f >> 153 590 |
|
- |
CABRIO |
|
|
|
|
|
- |
HARDTOP |
|
|
|
f >> 80 039 |
|
- |
ROADSTER |
|
36
|
9000760100B
|
hexagon nut m 6 |
2 |
$1.06 |
|
|
|
|
f >> 111 930 |
|
- |
COUPE |
|
|
|
|
|
- |
-REUTTER- |
|
|
|
f >> 153 590 |
|
- |
CABRIO |
|
|
|
|
|
- |
HARDTOP |
|
|
|
f >> 80 039 |
|
- |
ROADSTER |
|
37
|
64450292205
|
nut lock |
1 |
- |
|
|
|
|
f 111 931 >> |
|
- |
COUPE |
|
|
|
|
|
- |
-REUTTER- |
|
|
|
f 153 591 >> |
|
- |
CABRIO |
|
|
|
|
|
- |
HARDTOP |
|
|
|
f 80 040 >> |
|
- |
ROADSTER |
|
|
|
f 111 931 >> |
|
- |
COUPE |
|
|
|
|
|
- |
-REUTTER- |
|
|
|
f 153 591 >> |
|
- |
CABRIO |
|
|
|
|
|
- |
HARDTOP |
|
|
|
f 80 040 >> |
|
- |
ROADSTER |
|
38
|
90002700403
|
lock ring 6 |
2 |
$1.00 |
|
|
|
|
f 111 931 >> |
|
- |
COUPE |
|
|
|
|
|
- |
-REUTTER- |
|
|
|
f 153 591 >> |
|
- |
CABRIO |
|
|
|
|
|
- |
HARDTOP |
|
|
|
f 80 040 >> |
|
- |
ROADSTER |
|
39
|
64434708106
|
steering wheel complete |
1 |
- |
|
|
40
|
644347801AX1AJ
|
steering wheel $ 425 mm only in exchange 644.347.801.ax.1aj |
1 |
- |
356 B-T5 |
|
(40)
|
644347801AX1AJ
|
steering wheel only in exchange 644.347.801ax.1aj |
1 |
- |
356 B-T6 |
|
(40)
|
64434708215
|
steering wheel with wooden ring |
1 |
$994.99 |
CARRERA 2000 |
|
(40)
|
64434780107
|
steering wheel with elevated hub 30 mm |
1 |
- |
|
|
-
|
64434708405
|
steering wheel with wooden ring and horn button |
1 |
$590.00 |
|
|
41
|
64434780305
|
horn button complete |
1 |
$362.99 |
|
|
42
|
64434782205
|
cap |
1 |
- |
|
|
43
|
64434782905
|
ring |
1 |
$7.02 |
|
|
44
|
91434783100
|
contact pin |
1 |
$13.50 |
|
|
45
|
90161332505
|
cancelling ring |
1 |
$61.60 |
|
|
-
|
90026900607
|
countersunk-head screw |
2 |
- |
|
|
-
|
PCG61380600
|
insulating bush for horn button |
2 |
$1.10 |
|
|
46
|
90134782301
|
rubber insert |
1 |
$7.15 |
|
|
(46)
|
64434783505
|
rubber insert |
1 |
- |
|
|
47
|
64434708505
|
horn button complete |
1 |
$750.00 |
|
|
-
|
99903900510
|
contact spring for horn button |
1 |
- |
|
|
48
|
90007800702
|
hexagon nut m 18 x 1,5 |
1 |
$3.30 |
|
|
49
|
N0122391
|
spring washer b 18 |
1 |
$1.69 |
|
