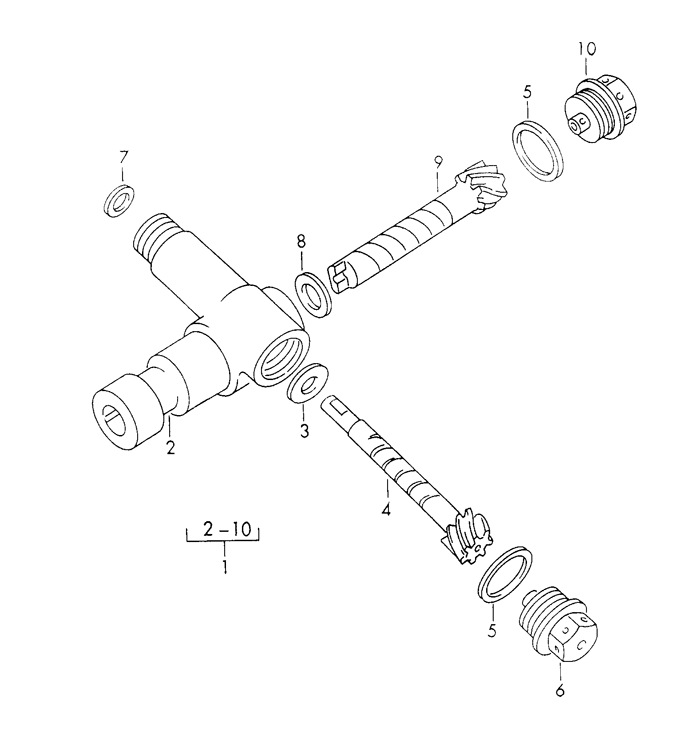

CARRERA driving mechanism tachometer

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1	69211801500	driving mechanism tachometer complete	1	-	587/1/2
2	69211810100	housing	1	-
3	36905718	thrust washer 0,8 mm	X	-
(3)	36905719	thrust washer 0,6 mm	X	$5.78
(3)	36905720	thrust washer 0,5 mm	X	-
4	54718107	drive shaft	1	-
(4)	54711810500	drive shaft for - abarth-carrera-	1	-	692/3/3A
5	90012301030	sealing ring aluminium a 20 x 24	2	$3.07
6	36905703	pressure screw	1	-
7	369057041	sealing ring felt	1	-
8	54718103	thrust washer 0,8 mm	X	-
(8)	54718104	thrust washer 0,6 mm	X	-
(8)	54718105	thrust washer 0,5 mm	X	-
9	54718108	pinion shaft	1	-
(9)	54711810700	pinion shaft for - abarth-carrera-	1	-	692/3/3A
10	54718106	pressure screw	1	-
-	54709217	clamping bow distributor	1	-
-	90002800801	spring washer b 6	1	$1.00
-	90007410102	hexagon-head bolt m 6x20	1	-
-	69211819100	spacer ring	1	-
-	N0122411	spring washer b 8	1	$1.00
-	50208310	hexagon nut	1	$2.59
