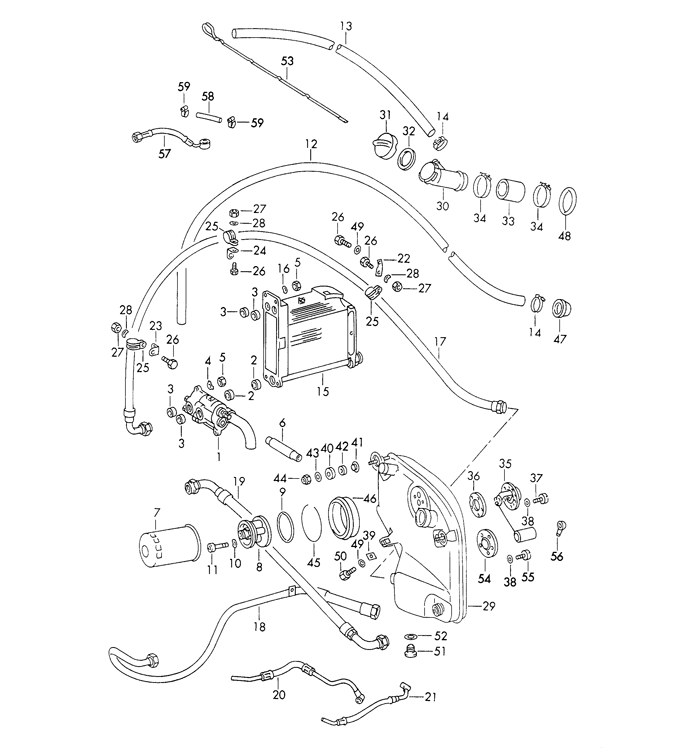

engine lubrication -71

POS Part Number Description Qty. Needed Price Model/Option Info
1 90110700206 oil pump 1 $462.88
2 99970417350 sealing ring 2 $2.00
3 99970417250 sealing ring 4 $2.15
4 99903900100 tab washer 3 $3.75
5 90007606402 hexagon nut m 8 7 $1.00
6 90110712100 connecting shaft 1 $73.45
7 90110720309 oil filter 1 $10.15
8 90110702500 bracket 1 $190.00 911 T/E
9 99970110050 o-ring 1 $1.00
10 N0122265 spring washer a 6 3 $1.00
11 N0147492 pan-head screw m 6 x 40 3 $1.87 911 T/E
12 90110739400 connecting hose crankcase - oil tank 1 -
13 90110739400 connecting hose oil tank - air cleaner 1 -
14 99951235602 hose clamp 4 $1.91
15 90110704150 oil cooler 1 -
15 90110704103 oil cooler(UP TO YEAR 71) 1 $1,365.09
16 N0122411 spring washer(UP TO YEAR 70) 4 $1.00
b 8 x 15(FOR YEAR 1971 & up) -
(16) N0122418 spring washer b 8 x 15 4 $1.00
17 90110733112 breather hose engine - oil tank 1 $82.00
18 90110772001 pressure line engine - oil tank 1 - 911 T/E:SPM
19 90110730113 breather hose 1 $92.25
19 90110730113 breather hose engine - oil tank 1 $92.25
20 90110734701 oil hose complete(DRIVER SIDE) 1 -
20 90110734702 oil hose complete(DRIVER SIDE) 1 $105.00
21 90110734802 oil hose complete(PASSENGER SIDE) 1 $39.00
22 90110735500 support not for sportomatic 1 -
23 90142336900 retaining bracket not for sportomatic 1 -
24 90110735700 retaining bracket not for sportomatic 1 -
25 99951106502 pipe clamp not for sportomatic 3 -
26 99907200501 hexagon-head bolt m 6 x 12 not for sportomatic 3 $1.06
27 N02214812 hexagon nut m 6 not for sportomatic 3 $1.74
27 9000760100B hexagon nut m 6 not for sportomatic 3 $1.06
28 90002800801 spring washer 3 $1.00
b 6 not for(FOR YEAR 1971 & up) -
sportomatic(FOR YEAR 1971 & up) -
29 91110700169 oil tank 1 $1,115.26
30 90110764002 filler neck 1 $265.69
31 90120127100 fuel tank cap with gasket 1 $39.60
32 90120127200 sealing ring 1 -
33 90110769400 hose 1 $40.44
34 99951234802 hose clamp 2 $2.63
35 90164154100 oil-level sender(UP TO YEAR 70) 1 $86.41 SPM
(FOR YEAR 1971 & up) - 911 E/S:SPM
36 91420189100 gasket 1 $4.25
37 N0147603 pan-head screw 5 $1.35 SPM
m 5 x 12(FROM YEAR 71 UP) - 911 E/S:SPM
m 5 x 12 - 911 E/S:SPM
38 90002500330 washer(UP TO YEAR 70) 5 $3.23 SPM
- 911 E/S:SPM
39 90150190920 intermediate layer 1 $5.25
40 90110766100 washer 2 $18.78
41 90110769200 washer 2 $7.00
42 90110769301 washer 2 $5.75
43 90015100802 washer b 8,4 b 8,4 2 $1.00
44 90008400403 hexagon nut m 8 2 $1.00
45 90110728100 circlip 1 $12.82
46 90110729100 sealing ring for oil filter 1 $16.80
47 90110769500 sealing sleeve for breather adapter 1 $20.76
48 90110769600 sealing ring 1 $24.71
49 N0115247 washer 6,4 2 $1.10
49 N01152427 washer 6,4 2 $1.00
50 N01021513 hexagon-head bolt m 6 x 15 1 $1.10
50 90007501103 hexagon-head bolt m 6 x 15 1 $2.15
51 91110717603 magnetic screw(UP TO YEAR 70) 1 $10.25
(51) 91110717603 magnetic screw(FOR YEAR 1971 & up) 1 $10.25
52 90012301130 sealing ring a 22 x 27 al 1 $1.00
53 90110777000 oil level dipstick 1 $25.00
54 90110763600 lid without sender for oil-level sender not for 1 - 911 T
sportomatic(FOR YEAR 1971 & up) -
55 90007500103 hexagon-head bolt m 5 x 8 not for sportomatic m 5 x 8 5 $4.84 911 T
56 99965901150 water protection cap(UP TO YEAR 70) 1 $15.03 SPM
(FOR YEAR 1971 & up) - 911 E/S:SPM
57 90111004101 hose line for injection pump 1 $59.99 911 E/S:SPM
57 90111004102 hose line for injection pump 1 $58.53 911 E/S:SPM
- 99918002950 hose c sn 710 * -
58 hose 10 x 60 1 - 911 E/S:SPM
59 99951213402 hose clamp 2 - 911 E/S:SPM
