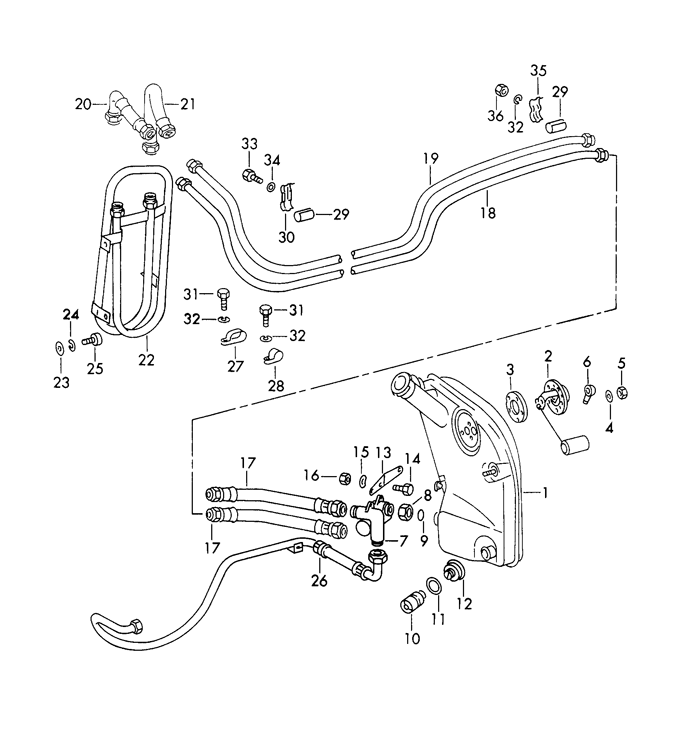

engine lubrication 73- auxiliary units for TYP 911/53/63/83/88

POS Part Number Description Qty. Needed Price Model/Option Info
1 91110700611 oil tank not for sportomatic 1 - 911 S
(1) 91110700602 oil tank(SPM) 1 - 911 S
2 90164154100 oil-level sender 1 $86.41 911 S
- CARRERA 2.7
3 91420189100 gasket 1 $4.25
4 90002500330 washer 5,3 125 al 5 $3.23
5 90007609101 nut m 5 5 $1.00
6 99965901150 water protection cap 1 $15.03 911 S
- CARRERA 2.7
7 91110701500 regulator housing 1 $966.83 911 S
- CARRERA 2.7
8 91110715700 union nut 1 $52.71 911 S
- CARRERA 2.7
9 91110715601 sealing ring 1 $18.01 911 S
- CARRERA 2.7
10 93010715500 regulator insert 1 $62.00 911 S
- CARRERA 2.7
11 90012313630 sealing ring 1 $7.22 911 S
a 42 x 49 al - CARRERA 2.7
12 91110715500 screw plug 1 $31.86 911 S
- CARRERA 2.7
13 91110715900 retaining bracket 1 - 911 S
- CARRERA 2.7
14 90007505703 hexagon-head bolt 2 $1.25 911 S
m 6 x 16 - CARRERA 2.7
14 90007505703 hexagon-head bolt 2 $1.25 911 S
m 6 x 16 - CARRERA 2.7
15 N0122265 spring washer 2 $1.00 911 S
a 6 - CARRERA 2.7
16 N02214812 hexagon nut 2 $1.74 911 S
m 6 - CARRERA 2.7
16 9000760100B hexagon nut 2 $1.06 911 S
m 6 - CARRERA 2.7
17 91110736100 hose line 2 $119.90 911 S
regulator housing intake and return line - CARRERA 2.7
18 91120704301 intake tube 1 $951.19 911 S
- CARRERA 2.7
19 91120704401 return pipe 1 $951.19 911 S
- CARRERA 2.7
20 91120702705 hose line 1 - 911 S
intake - radiator coil - CARRERA 2.7
21 91120702902 hose line 1 - 911 S
return line - radiator coil - CARRERA 2.7
21 91120702904 hose line 1 $88.00 911 S
return line - radiator coil - CARRERA 2.7
22 91110704700 radiator coil 1 $381.70 911 S
- CARRERA 2.7
23 90015100802 washer 2 $1.00 911 S
b 8,4 - CARRERA 2.7
24 90014200201 lock ring 2 $1.00 911 S
b 8 - CARRERA 2.7
25 90006705703 pan-head screw 2 $2.82 911 S
m 8 x 20 - CARRERA 2.7
25 90006705703 pan-head screw m 8 x 20 2 $2.82
26 91110772410 oil pipe 1 $253.00 911 S
engine - regulator housing oil tank - CARRERA 2.7
27 99951108402 pipe clamp 1 $9.28 911 S
rsgu 1100 20 x 25/15 - CARRERA 2.7
28 99951108002 pipe clamp 3 $4.43 911 S
rsgu 1100 22/15 - CARRERA 2.7
29 96420730200 hose piece 8 $13.05 911 S
for mount oil tube - CARRERA 2.7
30 91120730300 support 3 $12.50 911 S
for oil tube - CARRERA 2.7
31 90037803001 hexagon-head bolt 3 $1.10 911 S
m 6 x 20 - CARRERA 2.7
32 N0120064 lock ring 3 $1.00 911 S
b 6 - CARRERA 2.7
33 90018701003 tapping screw 3 $1.00 911 S
bz 6,3 x 19 - CARRERA 2.7
33 90018701003 tapping screw 3 $1.00 911 S
bz 6,3 x 19 - CARRERA 2.7
34 N0115247 washer 3 $1.10 911 S
b 6,4 - CARRERA 2.7
34 N01152427 washer 3 $1.00 911 S
b 6,4 - CARRERA 2.7
35 91120723700 support 1 $18.07 911 S
for oil tube - CARRERA 2.7
36 N02214812 hexagon nut 1 $1.74 911 S
m 6 - CARRERA 2.7
36 9000760100B hexagon nut 1 $1.06 911 S
m 6 - CARRERA 2.7
