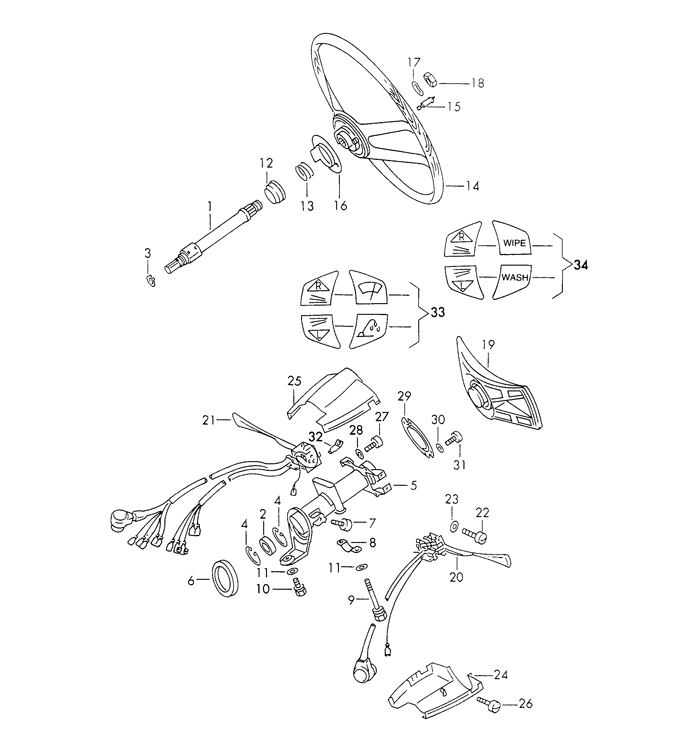

| POS |
Part Number |
Description |
Qty. Needed |
Price |
Model/Option Info |
|
1
|
90134706101
|
steering shaft |
1 |
- |
|
|
2
|
90005203100
|
deep-groove ball bearing |
1 |
$25.56 |
|
|
3
|
90004100800
|
circlip 17 x 1 |
1 |
$1.54 |
|
|
4
|
90004200800
|
circlip 35 x 1,5 |
2 |
$3.23 |
|
|
5
|
91134707300
|
steering outer tube(LEFTHAND DRIVE) |
1 |
- |
|
|
(5)
|
91134707201
|
steering outer tube(PASSENGER SIDE, L) |
1 |
$283.64 |
|
|
|
|
not for(UP TO YEAR 71) |
|
- |
TARGA |
|
6
|
91134771300
|
gasket |
1 |
$5.46 |
|
|
7
|
90014604402
|
oval-head screw am 6 x 10(PASSENGER SIDE, L) |
1 |
$1.00 |
|
|
|
|
not for |
|
- |
TARGA |
|
(7)
|
90022800202
|
threaded pin m 8 x 16(LEFTHAND DRIVE) |
1 |
$3.45 |
|
|
-
|
90007604402
|
hexagon nut(LEFTHAND DRIVE) |
1 |
$1.10 |
|
|
8
|
90134775500
|
clip |
1 |
- |
|
|
9
|
90134775400
|
shear bolt |
2 |
$31.80 |
|
|
10
|
90134775300
|
shear bolt |
1 |
$10.70 |
|
|
11
|
99952310202
|
washer m 8 pn |
3 |
$1.00 |
|
|
11
|
9995231020B
|
washer m 8 pn |
3 |
- |
|
|
12
|
91434771100
|
steering shaft bearing |
1 |
$320.77 |
|
|
13
|
91434771300
|
compression spring |
1 |
$3.05 |
|
|
14
|
91134708200
|
steering wheel(UP TO YEAR 72) |
1 |
- |
911 T |
|
|
|
hard rubber $ 400(FOR YEAR 1972 & up) |
|
- |
911 T-V/E |
|
(14)
|
90134708110
|
steering wheel(UP TO YEAR 72) |
1 |
$770.00 |
911 S |
|
|
|
leather $ 400 see classic technical information 4/94(UP TO YEAR 72) |
|
- |
911 T/E:M |
|
(14)
|
91134708200
|
steering wheel plastic material $ 400 see classic technical information 4/94(FROM YEAR 73 UP) |
1 |
- |
|
|
|
|
not for |
|
- |
CARRERA 2.7 |
|
(14)
|
911347084021AJ
|
steering wheel leather $ 380(FROM YEAR 73 UP) |
1 |
$878.03 |
CARRERA 2.7 |
|
(14)
|
90134708105
|
steering wheel(UP TO YEAR 71) |
1 |
- |
911 T/E/S:M |
|
|
|
hard rubber with elevated hub see classic technical information 4/94 |
|
- |
911 T/E:M |
|
(14)
|
90134708115
|
steering wheel leather with elevated hub see classic technical information 4/94(UP TO YEAR 72) |
1 |
- |
911 T/E/S:M |
|
(14)
|
91134708205
|
steering wheel(FROM YEAR 73 UP) |
1 |
- |
911 T/E/S:M |
|
|
|
plastic material with elevated hub see classic technical information 4/94 |
|
- |
CARRERA 2.7 |
|
15
|
91434783100
|
contact pin |
1 |
$13.50 |
|
|
(15)
|
91434783200
|
contact pin with elevated hub |
1 |
- |
|
|
16
|
90161332505
|
cancelling ring |
1 |
$61.60 |
|
|
-
|
90026900607
|
countersunk-head screw |
2 |
- |
|
|
17
|
N0122391
|
spring washer b 18 |
1 |
$1.69 |
|
|
18
|
90007800702
|
hexagon nut m 18 x 1,5 |
1 |
$3.30 |
|
|
19
|
91461380512
|
horn button |
1 |
$287.50 |
|
|
|
|
not for |
|
- |
CARRERA 2.7 |
|
(19)
|
91461380512
|
horn button |
1 |
$287.50 |
CARRERA 2.7 |
|
20
|
|
direction indicator switch see group 9/03/20 |
1 |
- |
|
|
21
|
|
wiper switch see group 9/03/20 |
1 |
- |
|
|
22
|
90001406902
|
pan-head screw am 3 x 8 |
4 |
- |
|
|
23
|
90011500701
|
serrated lock washer a 3,2 |
4 |
$2.00 |
|
|
24
|
90161331201
|
switch housing lower part |
1 |
$39.58 |
|
|
25
|
90161331101
|
switch housing upper part |
1 |
$39.58 |
|
|
26
|
90001407902
|
pan-head screw am 3 x 10 |
2 |
$3.23 |
|
|
27
|
90001404602
|
pan-head screw am 4 x 10 |
4 |
$1.10 |
|
|
28
|
N0121161
|
serrated lock washer a 4,3 |
4 |
- |
|
|
29
|
90161391500
|
contact plate |
1 |
$60.04 |
|
|
30
|
90001404602
|
pan-head screw m 4 x 10 |
2 |
$1.10 |
|
|
31
|
N0121161
|
serrated lock washer a 4,3 |
2 |
- |
|
|
32
|
99965231502
|
flat plug |
1 |
$1.24 |
|
|
33
|
90155933001
|
cap with symbol 1 set for light and windscreen washer system |
1 |
$58.63 |
|
|
(33)
|
90155933001
|
logo 1 set for light and windscreen washer system((CDN) (J) (S)) |
1 |
$58.63 |
|
|
34
|
90155933001
|
cap with symbol 1 set for light and windscreen washer system((USA)) |
1 |
$58.63 |
|
