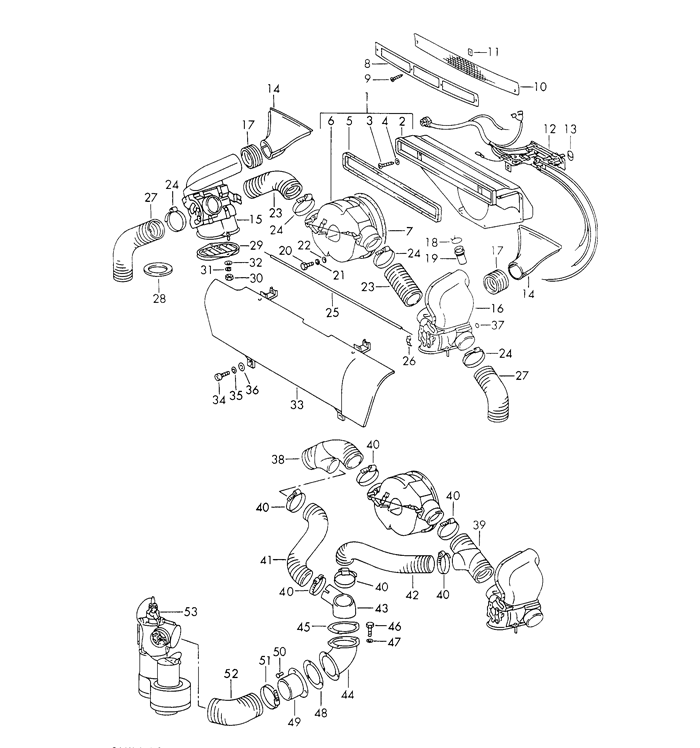

ventilation and heating

POS Part Number Description Qty. Needed Price Model/Option Info
1 90157102132 fresh air inlet box complete(LEFTHAND DRIVE, UP TO YEAR 72) 1 -
(1) 91157103100 fresh air inlet box complete(LEFTHAND DRIVE, FROM YEAR 73 UP) 1 -
(1) 90157102232 fresh air inlet box complete not for - targa-(PASSENGER SIDE, L UP TO YEAR 72) 1 $460.19
(1) 91157103200 fresh air inlet box complete not for - targa -(PASSENGER SIDE, L FROM YEAR 73 UP) 1 -
2 90157103032 fresh air inlet box(LEFTHAND DRIVE) 1 -
(2) 90157103232 fresh air inlet box not for - targa-(PASSENGER SIDE, L) 1 -
3 N0141531 oval-head screw m 5x40 din 7985 verz.(LEFTHAND DRIVE) 2 -
4 90002500302 washer 5,3 din 125-st verz.(LEFTHAND DRIVE) 2 -
5 90157132532 sealing frame 1 $36.49
6 91157101800 blower with engine 1 -
7 90157192201 sealing ring 1 $40.37
- 91157132032 blower motor with fan 1 $102.30
8 9115594010070K grille frame 1 $65.45
9 90014503600 rais. counters. h. tap. s. b 3,5x13 din 7983 4 $1.98
10 99355941100 grille 1 $68.82
11 99991122740 spacer 2 $18.10
12 91161311104 control part(LEFTHAND DRIVE) 1 -
(12) 91161311204 control switch(PASSENGER SIDE, L) 1 -
(12) 91161311130 actuator 1 -
- 90063113290 bulb 12 v / 1,2w 1 $1.00
- 91457190310 rubber base 2 $2.05
- 90007401202 hexagon-head bolt m 6x20 din 931-8.8 verz. 1 -
- N0115247 washer 6,4 din 125-st verz. 1 $1.10
- N01152427 washer 6,4 din 125-st verz. 1 $1.00
- 91457115110 rubber sleeve for bowden cable 1 $15.46
- 99970207250 rubber sleeve for bowden cable 3 -
13 90157191700 knob black 2 $12.40
(13) 90157191800 knob red 1 $12.00
14 90157204531 heating nozzle 2 -
15 91157105007 control box(PASSENGER SIDE) 1 -
16 91157104907 control box(DRIVER SIDE) 1 -
17 90157134532 hose piece $ 61 2 $27.70
18 99951214502 hose clamp 1 -
19 90157132632 connection piece 1 $39.60
- 90157106320 water drain tube(LEFTHAND DRIVE, UP TO YEAR 71) 1 -
- 90157106420 water drain tube(PASSENGER SIDE, L UP TO YEAR 71) 1 -
- 91157122400 water drain hose(FROM YEAR 72 UP) 1 $40.70
20 90007510502 hexagon-head bolt m 5x10 din 933-8.8 verz. 2 $1.00
21 90002701101 lock ring b 5 din 127 phr 2 $1.00
22 90002500302 washer 5,3 din 125 verz. 2 -
23 91457212310 air hose $ 61 2 $35.79
24 99951234902 hose clamp 8 $2.00
24 99951234901 hose clamp 8 $2.75
24 9995123490B hose clamp 8 -
25 91157211400 bowden control(UP TO YEAR 70) 2 -
(25) 91157211400 bowden cable(FROM YEAR 71 UP) 2 -
26 90157191900 fastening clamp 7 $5.78
27 91457212310 heater hose $ 61 1 $35.79
28 90157291301 gasket 2 $17.34
29 91157134801 air distributor 2 -
30 N0447341 pan-head screw m 5x15 din 912-8 verz. 4 -
31 N0120053 lock ring b 5 din 127 phr 4 $1.00
32 90002500302 washer 5,3 din 125-st verz. 4 -
33 91155106704 lining for luggage compartment 1 $294.70
34 90001403802 pan-head screw am 6x12 din 84 verz. 4 -
35 90002700403 lock ring a 6 din 127 phr 4 $1.00
36 90015100302 washer 6,4 din 9021 verz. 4 $1.10
36 90015100603 washer 6,4 din 9021 verz. 4 $1.00
37 90157192100 retainer picture nr. 38-53 installation set for subsequent installation for heater left-hand drive 24 -
38 90157206600 air hose with connection piece(PASSENGER SIDE) 1 -
39 90157206500 air hose with connection piece(DRIVER SIDE) 1 -
40 99951234802 hose clamp 4 $2.63
41 90157264800 hose for hot air(PASSENGER SIDE) 1 -
42 90157264700 hose for hot air(DRIVER SIDE) 1 -
43 90157205400 distributing piece 1 -
44 90157205800 connecting piece 1 -
45 90157252700 sealing washer 1 $4.03
46 90007521902 hexagon-head bolt m 5x10 din 933-8g verz.(UP TO YEAR 71) 3 -
(46) 90007510502 hexagon-head bolt m 5x10(FROM YEAR 72 UP) 3 $1.00
47 90002500302 washer 5,3 din 125 st verz. 3 -
48 90157252600 gasket 1 $20.22
49 90157252100 flap 1 $74.86
50 90005501920 buttonhead rivet 3x6 din 660 cu 3 -
51 99951215102 hose clamp 2 -
52 90157264900 hose 1 -
53 hose $ 70 see group 8/13/05 -
