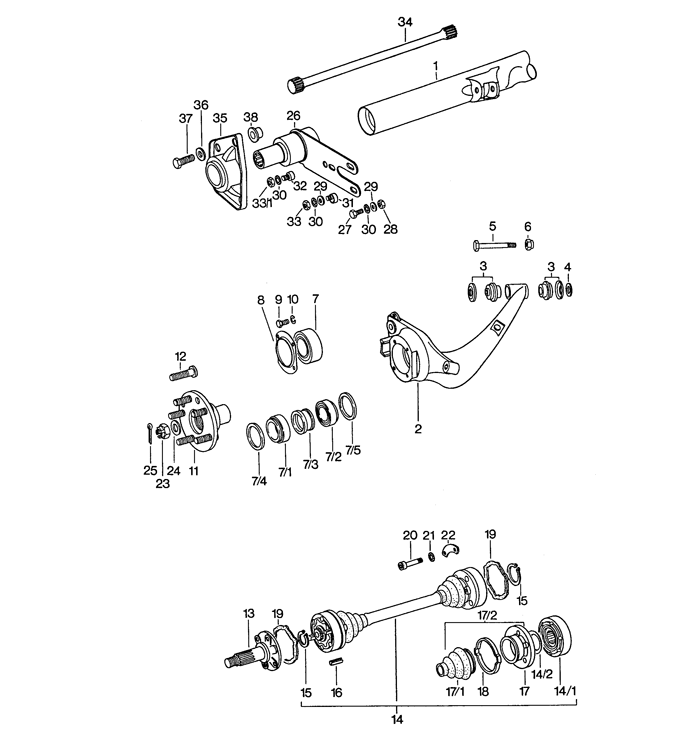

rear axle

POS Part Number Description Qty. Needed Price Model/Option Info
1 91133101002 rear-axle cross-tube 1 -
2 91133151306 rear-axle trailing arm(DRIVER SIDE) 1 -
(2) 91133151400 rear-axle trailing arm(PASSENGER SIDE) 1 -
3 90133105900 block and washer 4 $25.50
4 N0115344 washer 2 -
5 90008206408 hexagon-head bolt m 14 x 1,5 x 75 2 -
6 99908401402 hexagon nut m 14 x 1,5 2 -
7 99905302001 angular-contact bearing 2 $49.27
8 91133156130 reinforcement cover 2 $34.18
9 90007507902 hexagon-head bolt m 8 x 22 8 $1.90
10 90002701502 lock ring b 8 8 $1.10
10 90002701503 lock ring b 8 8 $1.89
11 91133106533 rear-wheel hub with wheel bolt 2 $1,057.99
12 90434167100 wheel bolt 10 $6.00
- 91133191500 ball pin see technical information nr.23 v. 19.03.79 1 -
13 90133223200 drive shaft 2 - 911/911S
f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
13 90133223200 drive shaft 2 - SPM
(13) 92333223201 drive shaft 2 $698.64 912E/911S
f 91151 00278>> f 91151 10610>> f 91152 01530>> f 91152 10860>> f 91153 00273>> f 91153 10148>> f 91154 00174>> f 91154 10089>> f 91156 00321>> f 91156 10120>> - CARRERA 2.7
14 91133203309 drive shaft 2 $238.50 911/911S
f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
14 91133203309 drive shaft 2 $238.50 SPM
(14) 92333203302 drive shaft 2 $283.40 912E/911S
f 91151 00728>> f 91151 10610>> f 91152 01530>> f 91152 10860>> f 91153 00273>> f 91153 10148>> f 91154 00174>> f 91154 10089>> f 91156 00321>> f 91156 10120>> - CARRERA 2.7
14/1 91133203202 joint 4 $328.70 911/911S
f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
14/1 91133203202 joint 4 $328.70 SPM
(14/1 92333203200 joint 4 $78.07 912E/911S
f 91151 00728>> f 91151 10610>> f 91152 01530>> f 91152 10860>> f 91153 00273>> f 91153 10148>> f 91154 00174>> f 91154 10089>> f 91156 00321>> f 91156 10120>> - CARRERA 2.7
14/2 90133231200 cup spring 4 $8.21 911/911S
f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
14/2 90133231200 cup spring 4 $8.21 SPM
14/2 90133231110 cup spring 4 - 912E/911S
f 91151 00728>> f 91151 10610>> f 91152 01530>> f 91152 10860>> f 91153 00273>> f 91153 10148>> f 91154 00174>> f 91154 10089>> f 91156 00321>> f 91156 10120>> - CARRERA 2.7
15 99904101201 circlip 4 $5.21 911/911S
f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
15 99904101201 circlip 4 $5.21 SPM
(15) 99904101601 circlip 4 $3.23 912E/911S
f 91151 00728>> f 91151 10610>> f 91152 01530>> f 91152 10860>> f 91153 00273>> f 91153 10148>> f 91154 00174>> f 91154 10089>> f 91156 00321>> f 91156 10120>> - CARRERA 2.7
16 99909501900 clamping pin 8 $5.21 911/911S
s 10 x 20 f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
16 99909501900 clamping pin s 10 x 20 8 $5.21 SPM
17 91133229503 protection cap 4 $25.95 911/911S
f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
17/1 90133229312 dust bellows 4 $8.00 911/911S
f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
17/1 90133229312 dust bellows 4 $8.00 SPM
17/2 92333203700 dust bellows 4 $61.99 912E/911S
with flange f 91151 00728>> f 91151 10610>> f 91152 01530>> f 91152 10860>> f 91153 00273>> f 91153 10148>> f 91154 00174>> f 91154 10089>> f 91156 00321>> f 91156 10120>> - CARRERA 2.7
18 91133225700 clip 4 $7.10 911/911S
73 $ x 6 f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
18 91133225700 clip 73 $ x 6 4 $7.10 SPM
19 90133229700 gasket 4 $2.75 911/911S
f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
19 90133229700 gasket 4 $2.75 SPM
(19) 92333229700 gasket 8 $2.75 912E/911S
f 91151 00728>> f 91151 10610>> f 91152 01530>> f 91152 10860>> f 91153 00273>> f 91153 10148>> f 91154 00174>> f 91154 10089>> f 91156 00321>> f 91156 10120>> - CARRERA 2.7
20 90006722909 pan-head screw 16 - 911/911S
m 10 x 48 f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
20 90006722909 pan-head screw m 10 x 48 16 - SPM
(20) 90006721109 pan-head screw 24 $1.75 912E/911S
m 8 x 50 f 91151 00728>> f 91151 10610>> f 91152 01530>> f 91152 10860>> f 91153 00273>> f 91153 10148>> f 91154 00174>> f 91154 10089>> f 91156 00321>> f 91156 10120>> - CARRERA 2.7
21 99952310301 lock washer 16 $2.27 911/911S
m 10 f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
21 99952310301 lock washer m 10 16 $2.27 SPM
22 91133219100 plate 8 $4.50 911/911S
f >>91151 00727 f >>91151 10609 f >>91152 01529 f >>91152 10859 f >>91153 00272 f >>91153 10147 f >>91154 00173 f >>91154 10088 f >>91156 00320 f >>91156 10119 - CARRERA 2.7
23 90133280601 castle nut 2 $18.34
24 99902504601 washer 2 $20.00
25 N0125381 cotter pin 4 x 40 2 $1.10
26 90133300309 rear axle strut 1976 f >>91162 01872 f >>91162 11898 f >>91163 01741 f >>91163 11425 f >>91166 01021 f >>91166 10439 f >>91260 01838 f >>93067 00641 f >>93068 00493 2 $306.90
(26) 91133300905 rear axle strut f 91162 01873>> f 91162 11899>> f 91163 01742>> f 91163 11426>> f 91166 01022>> f 91166 10440>> f 91260 01839>> f 93067 00642>> f 93068 00494>> 2 $273.90
- 90036000701 lock nut f 91162 01873>> f 91162 11899>> f 91163 01742>> f 91163 11426>> f 91166 01022>> f 91166 10440>> f 91260 01839>> f 93067 00642>> f 93068 00494>> 4 $5.98
- 91133110701 spacer ring f 91162 01873>> f 91162 11899>> f 91163 01742>> f 91163 11426>> f 91166 01022>> f 91166 10440>> f 91260 01839>> f 93067 00642>> f 93068 00494>> 2 $19.71
- 91133330300 eccentric screw f 91162 01873>> f 91162 11899>> f 91163 01742>> f 91163 11426>> f 91166 01022>> f 91166 10440>> f 91260 01839>> f 93067 00642>> f 93068 00494>> 2 -
- 91133330500 hexagon-head bolt f 91162 01873>> f 91162 11899>> f 91163 01742>> f 91163 11426>> f 91166 01022>> f 91166 10440>> f 91260 01839>> f 93067 00642>> f 93068 00494>> 2 -
- 91133330702 washer f 91162 01873>> f 91162 11899>> f 91163 01742>> f 91163 11426>> f 91166 01022>> f 91166 10440>> f 91260 01839>> f 93067 00642>> f 93068 00494>> 4 -
- 90007504302 hexagon-head bolt m 10 x 35 f 91162 01873>> f 91162 11899>> f 91163 01742>> f 91163 11426>> f 91166 01022>> f 91166 10440>> f 91260 01839>> f 93067 00642>> f 93068 00494>> 8 $1.59
27 90008301908 hexagon-head bolt m 12 x 1,5 x 35 4 -
28 90003403601 hexagon nut m 12 x 1,5 4 $2.53
29 90133314301 washer 10 -
30 99952310902 lock washer m 12 8 $1.65
31 90133313306 eccentric 2 $19.53
32 90133313305 eccentric 2 $19.42
33 90007801702 hexagon nut m 12 x 1,5 2 $4.30
33/1 90003403601 hexagon nut m 12 x 1,5 2 $2.53
34 90133310105 torsion bar 23 $(DRIVER SIDE) 1 $176.62
(34) 90133310205 torsion bar 23 $(PASSENGER SIDE) 1 $153.63
35 90133315300 housing 2 $29.87
36 90002500804 washer 10,5 8 $1.00
37 90007504202 hexagon-head bolt m 10 x 28 8 $4.42
38 90133110700 spacer ring 2 $34.02
