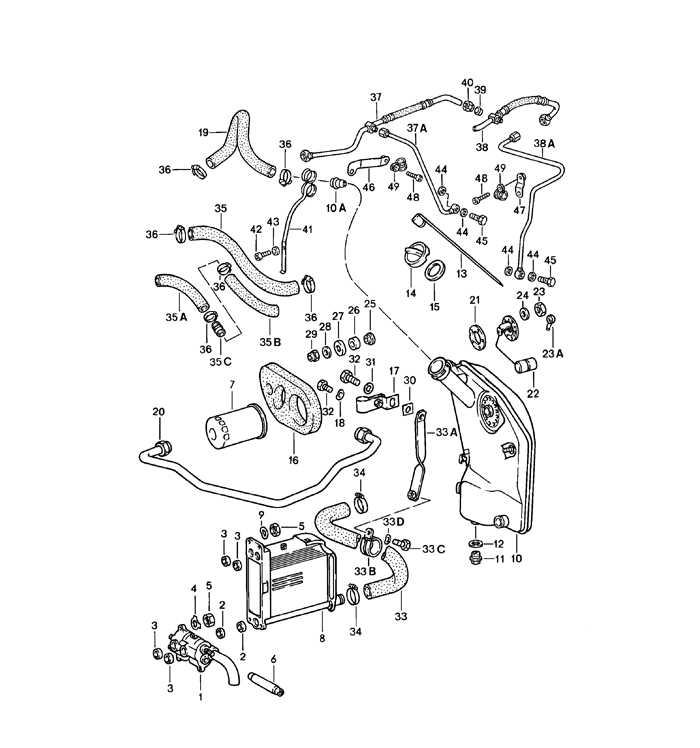

engine lubrication oil pump GR.1 NR.1/85

POS Part Number Description Qty. Needed Price Model/Option Info
1 91110700801 oil pump m >> 63d 4069 m >> 64d 3716 m >> 63d 8154 m >> 67d 0711 1 - SC
1 91110700805 oil pump m 63d 4070 >> m 64d 3717 >> m 63d 8155 >> m 67d 0712 >> 1 $1,149.99 SC
1 93010700802 oil pump m >> 63d 4069 m >> 64d 3716 m >> 63d 8154 m >> 67d 0711 1 $860.38 TURBO
1 99610700870 oil pump m 63d 4070 >> m 64d 3717 >> m 63d 8155 >> m 67d 0712 >> 1 $1,333.99 TURBO
2 99970417350 sealing ring 2 $2.00
3 99970417250 sealing ring 4 $2.15
4 99903900100 tab washer 3 $3.75
5 90007606402 hexagon nut m 8 7 $1.00
6 90110712100 connecting shaft 1 $73.45 SC
6 93010714303 connecting shaft 1 $94.99 TURBO
7 93010776401 oil filter 1 $13.20
8 91110704100 oil cooler 1 -
8 91110704102 oil cooler 1 $1,292.99
9 N0122418 spring washer b 8 x 15 4 $1.00
10 91110700620 oil tank 1 $1,284.79 SC
10 91110700622 oil tank use also: 1 - SC
10 91110700626 oil tank use also: 1 - SC
- PCG51219802 hose clamp 1 $5.87
- 034133335D cap 1 $5.00
10 93010700600 oil tank(SPM) 1 - SC
10 93010700603 oil tank use also:(SPM) 1 $651.23 SC
10 93010700604 oil tank use also:(SPM) 1 - SC
- 94410709101 oil filler cover 1 $13.00
- 93010760102 adapter 1 $71.95
- 90010401302 union nut 1 $7.55
10 93010700600 oil tank 1 - TURBO
10 93010700603 oil tank use also: 1 $651.23
10 93010700604 oil tank use also: 1 -
- 94410709101 oil filler cover 1 $13.00
- 93010760102 adapter 1 $71.95
- 90010401302 union nut 1 $7.55
- 93010760100 round socket((CDN)) 1 $16.58 TURBO
((AUS)) -
- 90010401502 union nut((CDN)) 1 $7.22 TURBO
b1 l10((AUS)) -
10A 93010728900 restrictor(FROM YEAR 81 UP) 1 $31.42
11 91110717603 screw plug 1 $10.25
12 90012301120 sealing ring a 22 x 27 1 $1.85
13 93010773100 oil level dipstick(UP TO YEAR 80) 1 $20.56
13 93010773101 oil level dipstick(FROM YEAR 81 UP) 1 $19.68
14 91110707202 fuel tank cap 1 -
15 93010727201 sealing ring 1 $2.50
16 91110719203 gasket 1 $34.00
17 90150193022 support 1 $20.92
18 N0122265 spring washer 1 $1.00
18 N0122265 spring washer a 6 1 $1.00
19 93010739900 connecting hose oil tank air cleaner 1 $47.00 SC
19 93010739501 connecting hose oil tank air cleaner 1 $28.92 TURBO
20 93010774111 oil pipe 1 $105.30 SC
20 91110774410 oil pipe 1 - TURBO
21 91420189100 gasket 1 $4.25
22 91164154101 tank gauge(UP TO YEAR 80) 1 -
22 91164154102 tank gauge 1 $75.46
23 90007609101 hexagon nut 5 $1.00
23 90007609101 hexagon nut m 5 5 $1.00
23A 99965901150 protection cap 1 $15.03
24 90002500330 washer 5,3 5 $3.23
25 90110769200 washer 2 $7.00
26 90110769301 washer 2 $5.75
27 90110766100 washer 2 $18.78
28 90015100802 washer b 8,4 2 $1.00
29 90008400403 hexagon nut 2 $1.00
29 90008400403 hexagon nut m 8 2 $1.00
30 90150190920 intermediate layer 1 $5.25
31 N0115247 washer 1 $1.10
31 N01152427 washer 1 $1.00
31 N0115247 washer 6,4 1 $1.10
31 N01152427 washer 6,4 1 $1.00
32 90007505703 hexagon-head bolt m 6 x 16 2 $1.25
33 91110723300 suction hose 1 $27.00 SC
33 93010723302 suction hose 1 $22.95 TURBO
33A 93010740900 support 1 $13.43 TURBO
33B 93010740703 pipe clamp 1 $23.67 SC
33B 99951112302 pipe clamp 1 $6.15 TURBO
33C 90007505703 hexagon-head bolt 1 $1.25 TURBO
33C 90007505703 hexagon-head bolt m 6 x 16 1 $1.25 TURBO
33D N0122265 spring washer 1 $1.00 TURBO
33D N0122265 spring washer b 6 1 $1.00 TURBO
34 99951209100 hose clamp 2 $13.00
35 90110739400 connecting hose engine oil tank(UP TO YEAR 79) 1 - SC
(35) 93010739701 line for bleeding crankcase 1 $578.63 TURBO
(35) 93010739300 connecting hose engine oil tank 1 $154.67 TURBO
35A 93010739410 connecting hose engine oil tank(FROM YEAR 80 UP) 1 $18.64 SC
35B 93010739409 connecting hose engine oil tank(FROM YEAR 80 UP) 1 $26.56 SC
35C 93011026704 connecting piece(FROM YEAR 80 UP) 1 $10.12 SC
36 99951235602 hose clamp 25-40/9 7 $1.91
36 99951225202 hose clamp 2 $2.00 TURBO
(37) 90110734701 oil hose m >> 63d 4069 m >> 64d 3716 m >> 63d 8154 m >> 67d 0711(DRIVER SIDE) 1 -
(37) 90110734702 oil hose m >> 63d 4069 m >> 64d 3716 m >> 63d 8154 m >> 67d 0711(DRIVER SIDE) 1 $105.00
37 93010734712 oil hose m 63d 4070 >> m 64d 3717 >> m 63d 8155 >> m 67d 0712 >> 1 -
37 93010734704 oil hose m 63d 4070 >> m 64d 3717 >> m 63d 8155 >> m 67d 0712 >> 1 -
37A 93010734702 oil pipe m 63d 4070 >> m 64d 3717 >> m 63d 8155 >> m 67d 0712 >> 1 $45.00
(38) 90110734802 breather hose m >> 63d 4069 m >> 64d 3716 m >> 63d 8154 m >> 67d 0711(PASSENGER SIDE) 1 $39.00
38 93010734812 oil hose m 63d 4070 >> m 64d 3717 >> m 63d 8155 >> m 67d 0712 >> 1 $37.95
38A 93010734808 oil pipe m 63d 4070 >> m 64d 3717 >> m 63d 8155 >> m 67d 0712 >> 1 -
38A 93010734809 oil pipe m 63d 4070 >> m 64d 3717 >> m 63d 8155 >> m 67d 0712 >> 1 $27.50 (QI-1/87)
39 N0208251 cutting ring 2 $1.00
39 N0208251 cutting ring ll 8 2 $1.00
40 90010400302 union nut all 8 2 $1.00
40 90010400303 union nut all 8 2 $1.00
41 93020735600 retaining bracket(FROM YEAR 80 UP) 1 - SC
42 N01021513 hexagon-head bolt m 6 x 15(FROM YEAR 80 UP) 1 $1.10 SC
43 N0115247 washer 6,4(FROM YEAR 80 UP) 1 $1.10 SC
43 N01152427 washer 6,4(FROM YEAR 80 UP) 1 $1.00 SC
44 90012311530 sealing ring a 8 x 11,5 m 63d 4070 >> m 64d 3717 >> m 63d 8155 >> m 67d 0712 >> 4 $1.45
45 N0210731 banjo bolt ll 3-5 m 63d 4070 >> m 64d 3717 >> m 63d 8155 >> m 67d 0712 >> 2 $3.00
46 93010734100 support(DRIVER SIDE) 1 $5.00
47 93010734201 support(PASSENGER SIDE) 1 $3.23
48 90011908801 pan-head screw m 4 x 10 2 $1.10
49 PCG51117402 pipe clamp 4/9 2 $6.00
