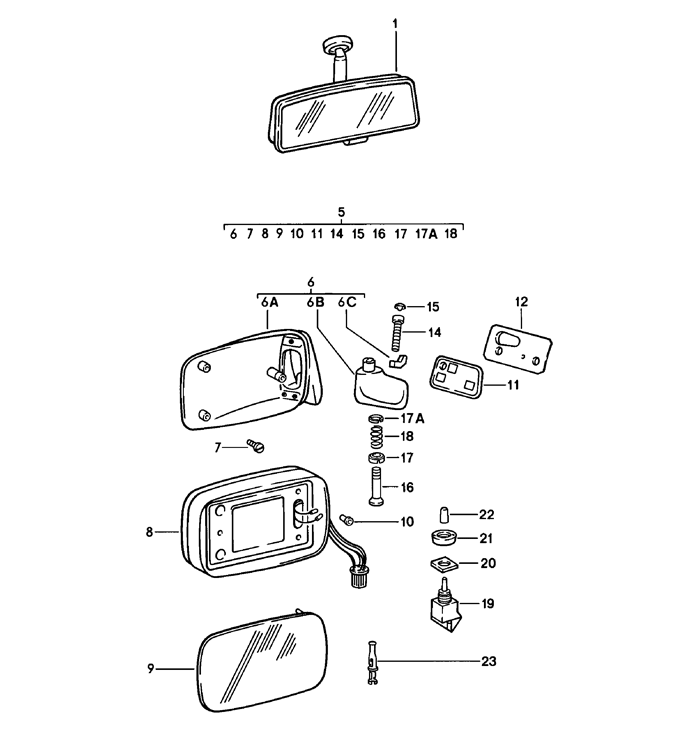

| POS |
Part Number |
Description |
Qty. Needed |
Price |
Model/Option Info |
|
1
|
|
interior mirror |
1 |
- |
|
|
|
477857511A01C
|
black |
|
$199.99 |
|
|
-
|
91173190101
|
installation set door mirror for subsequent installation order also:(LEFTHAND DRIVE, PASSENGER SIDE) |
1 |
- |
|
|
-
|
91161216501
|
wiring harness |
1 |
- |
|
|
-
|
91161216403
|
wiring harness pos.9 see tpi nr.22 |
1 |
$164.90 |
|
|
5
|
91173192701
|
door mirror plane(LEFTHAND DRIVE, LEFT) |
1 |
- |
|
|
5
|
91173192801
|
door mirror plane(LEFTHAND DRIVE, PASSENGER SIDE) |
1 |
- |
|
|
5
|
91173192701
|
door mirror convex(LEFTHAND DRIVE, LEFT) |
1 |
- |
|
|
5
|
91173192801
|
door mirror(LEFTHAND DRIVE, PASSENGER SIDE) |
1 |
- |
|
|
(5)
|
|
door mirror convex nr.22 |
|
- |
|
|
(5)
|
91173192701
|
repair kit door mirror(LEFTHAND DRIVE, LEFT) |
1 |
- |
|
|
(5)
|
91173192801
|
repair kit door mirror order also: pos. 8 - 10(LEFTHAND DRIVE, PASSENGER SIDE) |
1 |
- |
|
|
6A
|
91173104303
|
mirror housing(DRIVER SIDE) |
1 |
$57.50 |
|
|
(6A)
|
91173104403
|
mirror housing(PASSENGER SIDE) |
1 |
$79.93 |
|
|
6B
|
91173124102
|
mirror base(LEFTHAND DRIVE, LEFT) |
1 |
$180.42 |
|
|
(6B)
|
91173128802
|
mirror base(LEFTHAND DRIVE, PASSENGER SIDE) |
1 |
$180.42 |
|
|
6AB
|
|
mirror housing(DRIVER SIDE) |
1 |
- |
|
|
|
94473102101G3M
|
with mirror base grey prime coated |
|
$72.01 |
|
|
6C
|
91173126300
|
mounting piece |
2 |
$13.12 |
|
|
7
|
99914300302
|
hexagon-head bolt m 5 x 10 |
3 |
$1.15 |
|
|
8
|
91173102706
|
covering frame(DRIVER SIDE) |
1 |
- |
|
|
(8)
|
91173102806
|
covering frame(PASSENGER SIDE) |
1 |
- |
|
|
9
|
91173103508
|
mirror glass plane |
1 |
$132.38 |
|
|
(9)
|
91173103509
|
mirror glass((J) (N) (S)) |
1 |
$29.15 |
|
|
(9)
|
91173103509
|
mirror glass convex((J) (N) (S)) |
1 |
$29.15 |
|
|
10
|
99970312840
|
grommet |
3 |
$2.00 |
|
|
11
|
91173124700
|
desk pad(DRIVER SIDE) |
1 |
$5.78 |
|
|
(11)
|
91173124800
|
desk pad(PASSENGER SIDE) |
1 |
$5.73 |
|
|
12
|
91153119700
|
reinforcement(DRIVER SIDE) |
1 |
$20.66 |
|
|
(12)
|
91153119800
|
reinforcement(PASSENGER SIDE) |
1 |
$20.66 |
|
|
14
|
9992180210C
|
pan-head screw micro-self-locking m 5 x 35 |
1 |
$5.21 |
|
|
15
|
99970313740
|
cap |
1 |
$2.05 |
|
|
16
|
91173125703
|
guide tube |
1 |
$36.11 |
|
|
17
|
91173134502
|
centring washer lower |
1 |
$6.25 |
|
|
17A
|
91173134700
|
centring washer upper |
1 |
$6.25 |
|
|
18
|
91173102901
|
compression spring |
1 |
$5.31 |
|
|
19
|
91161311500
|
switch |
1 |
$129.05 |
|
|
20
|
91173134303
|
gasket |
1 |
$9.00 |
|
|
21
|
91173125100
|
round nut |
1 |
$21.25 |
|
|
22
|
91161363301
|
protection cap |
1 |
$12.00 |
|
|
-
|
477957861
|
rubber sleeve wheel housing |
1 |
$7.68 |
|
|
-
|
803971979
|
plug socket 7-pole |
1 |
$5.02 |
|
|
23
|
N0175624
|
cylindrical socket 1,6 x 0,75 |
X |
$1.69 |
|
|
-
|
111971958
|
flat receptacle 2,8 x 8 electric line |
6 |
- |
|
|
|
|
door mirror |
1 |
- |
|
|
-
|
91161216301
|
wiring harness driver's door |
1 |
- |
|
|
-
|
91161216302
|
wiring harness driver's door with alarm system - beifahrertšr- without spiegel(LEFTHAND DRIVE) |
1 |
$70.42 |
|
|
-
|
91173131700
|
seal connector |
1 |
$2.57 |
|
|
-
|
91161216203
|
wiring harness front luggage compartment(LEFTHAND DRIVE) |
1 |
$25.77 |
|
|
-
|
91161289000
|
plug socket 3-pole electric line |
1 |
$4.26 |
|
|
|
|
door mirror |
2 |
- |
|
|
-
|
91161216501
|
wiring harness driver's side |
1 |
- |
|
|
-
|
91161216601
|
wiring harness passenger's side |
1 |
- |
|
|
-
|
91161216060
|
wiring harness passenger's side relay heating(LEFTHAND DRIVE) |
1 |
$17.99 |
CABRIO |
|
-
|
91161216403
|
wiring harness front luggage compartment(LEFTHAND DRIVE) |
1 |
$164.90 |
|
|
-
|
803971980
|
pin connector socket 7-pole |
2 |
$5.02 |
|
