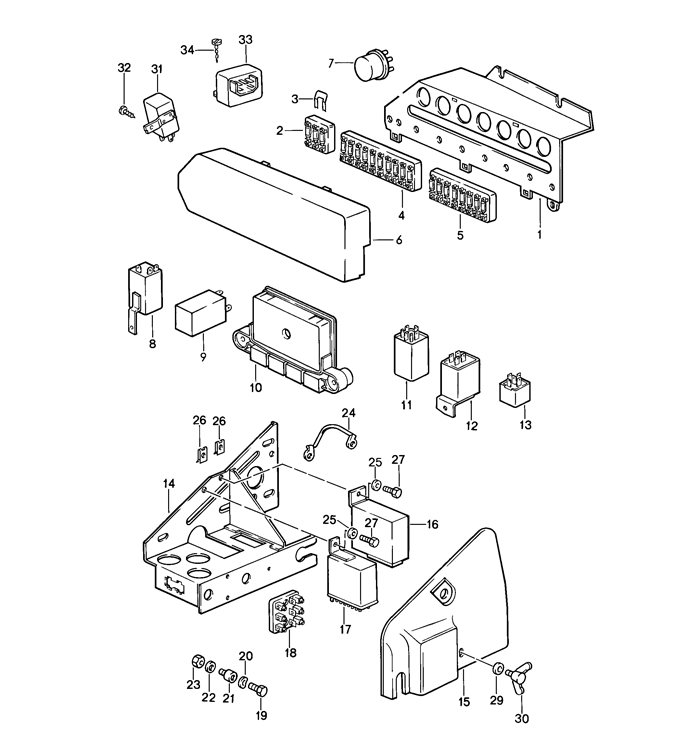

control unit relay fuse box

POS Part Number Description Qty. Needed Price Model/Option Info
1 91161219700 mounting plate 1 -
2 91161209305 fuse box triple 1 - CARRERA
(2) 91161209305 fuse box triple 1 - TURBO
3 90161283501 connecting rail 2 $4.17
4 91161208601 fuse box 10-fold 1 $206.47
5 91161208701 fuse box 8-fold 1 $213.70
6 91161216105 lid(FOR YEAR 1984 & up) 1 - CARRERA
(6) 91161216106 lid(UP TO YEAR 85) 1 - CARRERA
(6) 93061216102 lid(FOR YEAR 1984 & up) 1 $24.18 TURBO
(6) 93061216103 lid(UP TO YEAR 85) 1 - TURBO
(6) 91161216108 lid(FROM YEAR 86 UP) 1 $75.42
- 91161224300 assignment sticker(FROM YEAR 86 UP) 1 $56.12 CARRERA
- 93061224300 assignment sticker relay(FROM YEAR 86 UP) 1 - TURBO
7 91161510801 standard type relay red 1 $19.88
7 91161510901 standard type relay black X $20.49
(7) 94461511600 relay power window(FROM YEAR 85 UP) 1 $45.56
8 91161812100 relay engine-speed shutoff 1 $58.73 930.26YEARDESCRIPTION1985-19853.2L 6-CYL (911 CARRERA (AUSTRALIA)(SWEDEN)(SWITZERLAND))1987-19883.2L 6-CYL (911 CARRERA (SWEDEN))1986-19863.2L 6-CYL (911 CARRERA (SWEDEN)(SWITZERLAND))
(8) 91161511800 relay mass air flow meter boost pressure 1 $141.55
9 91461830311 flasher relay(FOR YEAR 1984 & up) 1 $19.50
(9) 1H0953227 flasher relay(FROM YEAR 85 UP) 1 $9.25
(9) 91161810300 flasher relay for cars with trailer coupling 1 -
10 91161831300 control unit for convertible top see technical information gr.6, nr. 6/96, typ 964 1 -
11 92861811302 relay intensive windscreen washer 1 -
12 93061711702 relay ignition cut-off 1 $161.59 TURBO
13 PCG95125300 relay for oxygen sensor 1 $3.93 CARRERA
14 91161001300 mounting plate(FOR YEAR 1984 & up) 1 $61.83 CARRERA
(14) 91161001301 mounting plate(FOR YEAR 1985 & up) 1 $214.39 CARRERA
(14) 91161010303 mounting plate(UP TO YEAR 85) 1 $87.47 TURBO
(14) 93061010301 mounting plate(FROM YEAR 86 UP) 1 $169.29 TURBO
15 91161010504 cover 1 $21.67
16 91161511500 relay rear window heating two-stage heatable 1 $325.66
17 91161815300 relay additional blower 1 -
18 91161209305 fuse box triple 1 - CARRERA
19 N0102085 hexagon-head bolt m 6 x 8 3 -
20 N0122265 spring washer b 6 3 $1.00
21 99970338401 megulastik pivot bearing 3 $7.20
22 90003101102 washer 6,4 3 $4.00
23 90091009602 lock nut vm 6 3 $16.60
24 91161200800 ground strap for mounting plate 1 $18.03
25 90015102801 washer b 4,3 x 12 2 $3.95
26 N0154292 speed nut b 4,2 2 -
27 90018701302 tapping screw bz 4,2 x 13 2 $1.17
29 90015100302 washer a 6,4 2 $1.10
29 90015100603 washer a 6,4 2 $1.00
30 90002910202 wing screw 2 $4.27
- N0171211 safety fuse 8 a X $1.00
- N0171215 safety fuse 25 a X $1.00
- N0171214 safety fuse 16 a X $1.00
- 90017300690 safety fuse 5 a X $1.10
- 91161240100 spacer 1 -
- 90014307602 oval-head sheetmetal screw 4,2 x 25 1 $2.13
- 90014600902 oval-head screw 4 x 12 $1.96
- 99950740140 special nut X -
