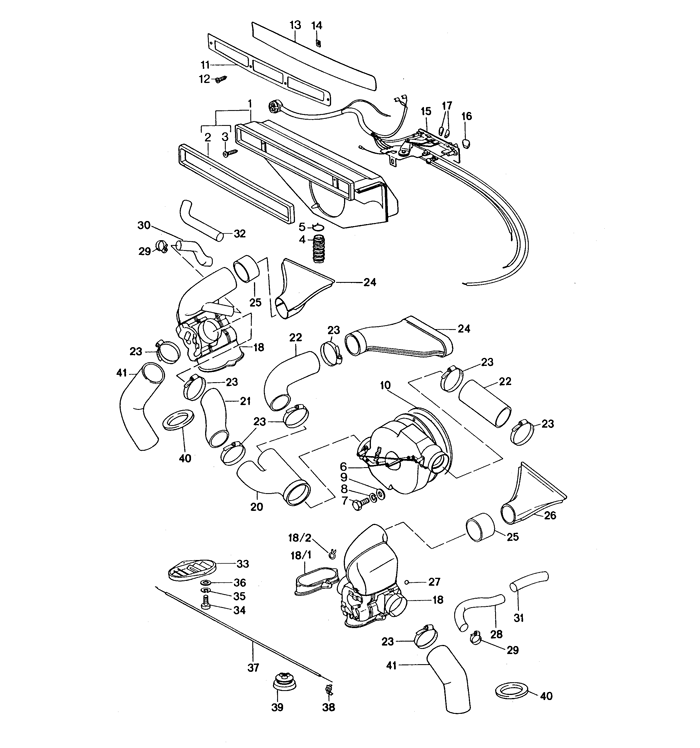

ventilation 77- heating system 2

POS Part Number Description Qty. Needed Price Model/Option Info
1 91157103100 fresh air inlet box(LEFTHAND DRIVE) 1 -
2 90157132532 sealing frame 1 $36.49
3 N0141531 oval-head screw m 5 x 40 2 -
4 91157122400 water drain hose(LEFTHAND DRIVE) 1 $40.70
6 91157101800 blower with engine 1 -
- 91157190500 housing front 1 -
- 91157190700 housing rear 1 $143.24
- 91157132032 blower motor with fan 1 $102.30
7 90007510502 hexagon-head bolt m 5 x 10 2 $1.00
8 90002701101 lock ring b 5 2 $1.00
9 90002500302 washer 5,3 2 -
10 90157192201 sealing ring 1 $40.37
11 9115594010070K grille frame 1 $65.45
12 90014503600 tapping screw b 3,5 x 13 4 $1.98
13 99355941100 grille(FRONT) 1 $68.82
14 99991122740 spacer 2 $18.10
(15) 91161311108 control switch(LEFTHAND DRIVE) 1 -
- 91161217201 wiring harness 1 -
- 90063113290 bulb 12 v, 2 w 1 $1.00
- 99963200600 bulb socket 1 $11.26
- 91457190310 sealing ring 1 $2.05
- 90037803001 hexagon-head bolt m 6 x 20 1 $1.10
- N0115247 washer 6,4 1 $1.10
- N01152427 washer 6,4 1 $1.00
- 91457115110 rubber sleeve for wire pull 1 $15.46
16 90157191700 knob black 1 $12.40
16 90157191800 knob red 1 $12.00
17 91161399500 knob black 2 $15.99
18 91157104907 control box(DRIVER SIDE) 1 -
18/1 91157105100 connecting flange 2 -
18/2 99951216202 clamping spring 4 $4.16
19 91157105007 control box(PASSENGER SIDE) 1 -
20 91157103900 distributing piece(LEFTHAND DRIVE) 1 -
21 91157123900 air hose 1 $94.62
22 473261233A air hose 2 $9.01
23 99951234902 hose clamp 8 $2.00
23 99951234901 hose clamp 8 $2.75
23 9995123490B hose clamp 8 -
24 91157108500 air duct(LEFTHAND DRIVE) 1 $63.34
25 90157134532 hose piece 2 $27.70
26 90157204531 heating nozzle 2 -
27 90157192100 retainer 24 -
28 91157122800 air hose(DRIVER SIDE) 1 $17.86
29 99951255101 hose clamp 1 $2.50
30 91157122800 air hose(PASSENGER SIDE) 1 $17.86
31 91157222300 air hose(DRIVER SIDE) 1 $43.27 COUPE
(31) 91157222300 air hose(PASSENGER SIDE) 1 $43.27 TARGA
32 91157122800 air hose(PASSENGER SIDE) 1 $17.86
33 91157134701 air distributor(DRIVER SIDE) 1 $13.84
(33) 91157134801 air distributor(PASSENGER SIDE) 1 -
34 N0447341 pan-head screw m 5 x 15 4 -
35 N0120053 lock ring b 5 4 $1.00
36 90002500302 washer 5,3 4 -
37 91157211400 bowden control 2 -
38 90157191900 terminal 7 $5.78
39 91161286300 grommet 1 -
40 90157291301 sealing ring 2 $17.34
41 91457212310 heater hose 2 $35.79
