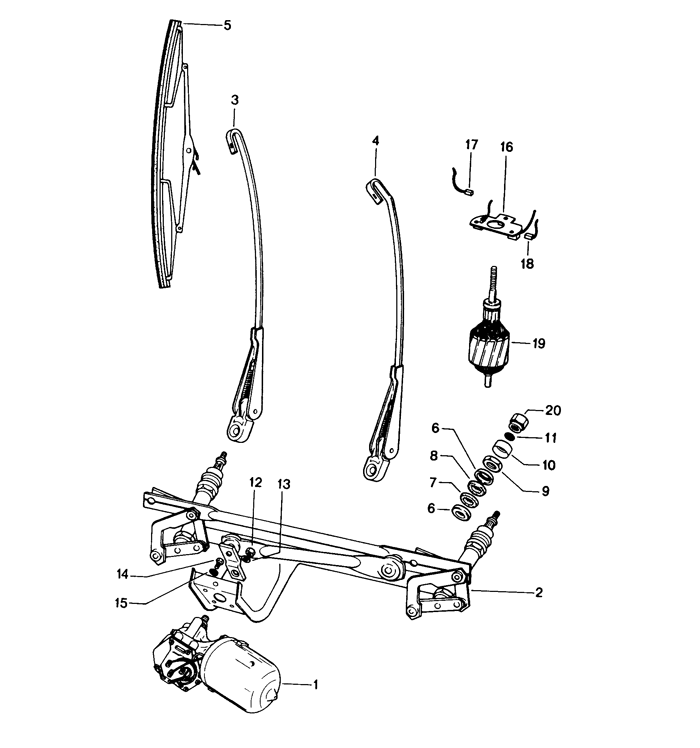

914, 914-6 windscreen wiper system 72-

POS	Part Number	Description	Qty. Needed	Price
-	91462801513	windscreen wiper system complete without wiper arm wiper blade switch(FROM YEAR 72 UP)	1	-
(1)	91462802013	wiper motor(FROM YEAR 72 UP)	1	$172.50
2	91462801120	windscreen wiper system crank drive without engine complete with picture 6 - 11 + 20	1	$287.50
3	91462831310	wiper arm - swf - installation instructions attention(DRIVER SIDE)	1	$24.00
4	91462831410	wiper arm - swf - installation instructions attention(PASSENGER SIDE)	1	$24.00
5	96462890102	wiper blade - swf -	2	$14.00
6	91162896300	flange washer chrome	4	$20.50
7	90162892301	rubber bush	2	$15.81
8	90162892400	rubber bush	2	$9.21
9	90162892500	hexagon nut	2	$6.50
10	90162892600	cap	2	$6.00
11	803955437	spring washer	2	$8.91
12	N02214812	hexagon nut m 6	1	$1.74
12	9000760100B	hexagon nut m 6	1	$1.06
13	91462890100	lock ring	1	$1.10
14	99907200501	hexagon-head bolt m 6 x 12	1	$1.06
15	N0421211	shake-proof washer j 6,4	1	$0.75
20	90162834100	cap nut	2	$9.00
-	91462811300	rubber buffer	1	$13.25
-	90002800801	spring washer b 6	1	$1.00
-	N02214812	hexagon nut m 6	1	$1.74
-	9000760100B	hexagon nut m 6	1	$1.06
