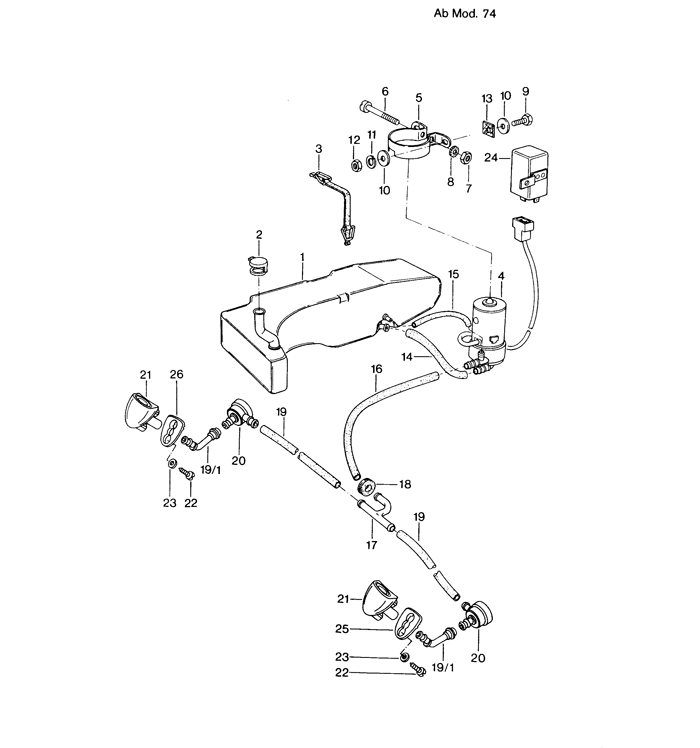

headlight washer system 74-

POS	Part Number	Description	Qty. Needed	Price
1	91462803110	water reservoir	1	-
2	91162816700	lid	1	$6.12
3	91462803510	restraining strap	1	-
4	91462412300	motor pump	1	-
5	91462822111	clip	1	-
6	N0107242	round head screw	1	-
7	90007609101	hexagon nut	1	$1.00
8	90011401401	shake-proof washer	1	$1.80
9	N01021513	hexagon-head bolt m 6 x 15	2	$1.10
10	90015100603	washer b 6,4	4	$1.00
11	N0120064	lock ring b 6	2	$1.00
12	N02214812	hexagon nut m 6	2	$1.74
12	9000760100B	hexagon nut m 6	2	$1.06
13	00004312900	sealing strap 25 x 20 x 2	4	$45.00
14	91462841710	hose water reservoir pump	1	-
15	91462841810	breather hose pump water reservoir	1	$1.10
16	91462841910	hose 790 mm distributing piece pump	1	$10.41
17	91462841310	distributing piece	1	$25.50
18	99970205950	rubber sleeve	1	-
19	91462842112	hose 525 mm distributing piece pressure control valve	2	-
19/1	91162880900	connecting piece(FROM YEAR 75 UP)	2	$9.09
20	113955187	nozzle	2	-
21	91462802710	jet carrier	2	$20.01
(21)	91462802711	jet carrier(FROM YEAR 75 UP)	2	-
22	N0113801	pan-head tapping screw b 4,2 x 9,5	4	-
23	N0122243	spring washer b 4	4	-
24	92861811100	relay	1	$118.91
25	91462843510	desk pad for jet carrier(DRIVER SIDE, FROM YEAR 75 UP)	1	-
26	91462843610	desk pad for jet carrier(PASSENGER SIDE, FROM YEAR 75 UP)	1	-
