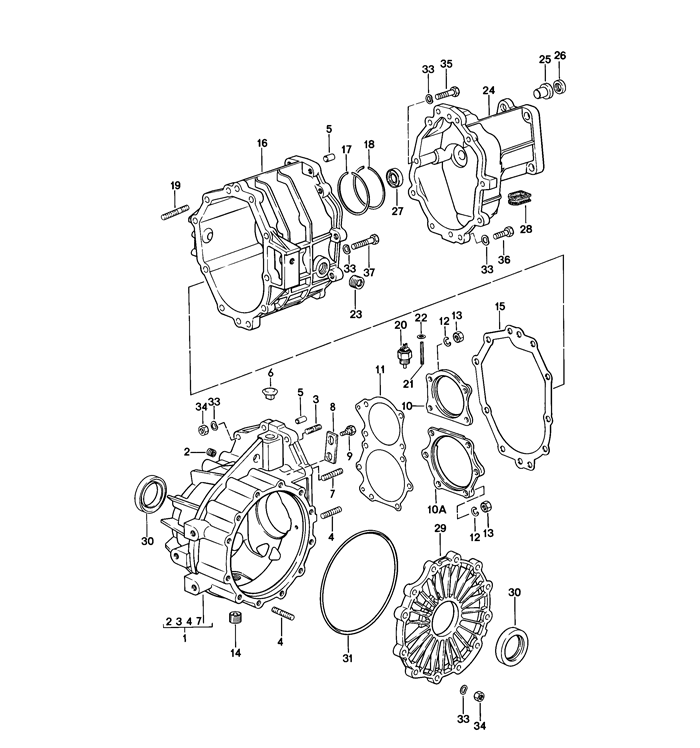

replacement transmission transmission case 5-speed

POS Part Number Description Qty. Needed Price Model/Option Info
- 477300010 replacement transmission ready for installation((J) 78) 1 - VA
- 477300010AU replacement transmission ready for installation 1 $163.60 VB
- 477300010C replacement transmission with limited-slip differential ready for installation 1 - VB
1 477301901A rear axle housing 1 - VA VB
2 99950404700 threaded insert m 10 x 10 2 $4.45
3 99906200602 stud bm 8 x 20 6 $1.65 VA VB
4 99906200802 stud bm 8 x 25 16 $3.30 VA VB
5 90001211000 straight pin m 6 x 14 4 $8.18
6 92830131101 bleeder 1 $9.88
7 90006010501 stud bm 8 x 28 2 $12.23
8 477303132A locking piece 1 -
9 477303133A hexagon-head bolt for locking piece 2 -
(10) 93030212100 tensioning plate 1 - VA VB
11 91530226803 adjusting shim 0,10 mm X $4.47
(11) 91530226804 adjusting shim 0,15 mm X $28.95
(11) 91530226805 adjusting shim 0,20 mm X $27.57
12 90002701502 lock ring 10 $1.10
12 90002701503 lock ring 10 $1.89
13 90007606402 hexagon nut 10 $1.00
14 113301141B magnetic plug 1 -
15 477301191A gasket 1 -
16 477301902 gear housing 1 - VA VB
17 90011100100 circlip 2 $12.83
18 99915203101 circlip 2 $4.14
19 99906209802 stud bm 8 x 38 1 $6.93
20 84941521 switch --10/78 1 $6.99
(20) 84941521 back-up light switch 11/78-- 1 $6.99
21 93130317500 pin 1 -
22 99904150301 locking ring 1 $1.54
23 WHT001937 screw plug m 24 x 1,5 1 $10.21
24 477301301C transmission cover front 1 - VA VB
25 1301209 guide bush 1 -
26 1301227 radial shaft seal 15 x 24 x 7 1 -
27 014311113B radial shaft seal 1 - VA VB
28 92830117100 cap 1 -
29 91530131106 transmission cover 1 $173.91
30 99911318340 radial shaft seal 45 x 68 x 10 2 $6.79
31 99970139240 o-ring 1 -
33 N0122418 spring washer X $1.00
34 90007606402 hexagon nut X $1.00
35 90007413402 hexagon-head bolt m 8 x 45 1 $3.43
36 90007509903 hexagon-head bolt m 8 x 30 m 8 x 30 9 $1.78
37 90007413903 hexagon-head bolt m 8 x 55 1 $2.68
