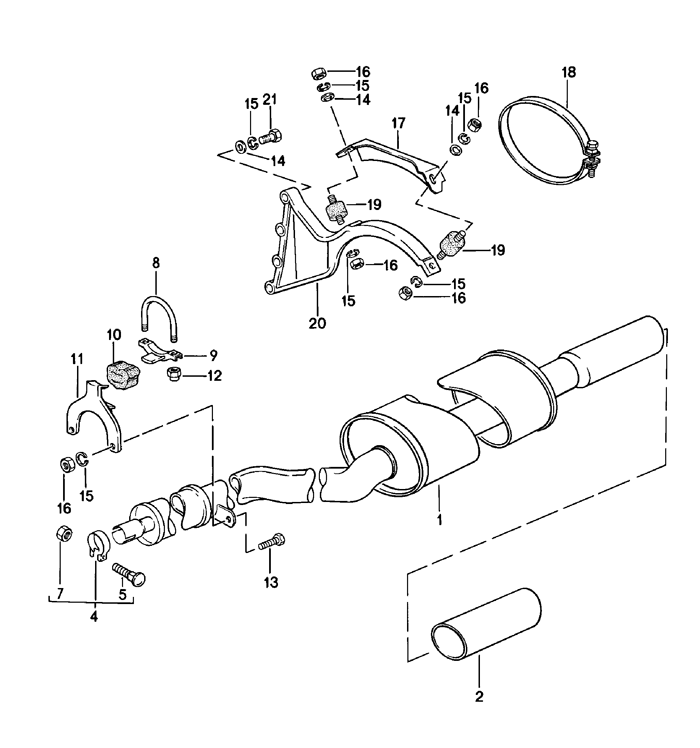

924 exhaust system rear muffler

POS	Part Number	Description	Qty. Needed	Price
1	477253125S	rear muffler	1	$687.35
2	477253192G	ornamental exhaust pipe	1	$168.67
2	477253192G	ornamental exhaust pipe chrome	1	$168.67
4	191253139G	clamp	1	$2.86
5	N90206401	round head screw m 10 x 50	1	$1.10
7	N10155210	hexagon nut m 10	1	$3.74
8	47725313900	clip	1	$23.00
9	94411130700	support	1	$21.74
10	94411114202	rubber mounting	1	$21.00
11	477253245	hook	1	$23.39
12	90091009702	lock nut vm 8	2	-
13	90007508502	hexagon-head bolt m 8 x 20	2	$1.00
14	90002500703	washer a 8,4	6	$0.79
15	90002701502	lock ring b 8	6	$1.10
15	90002701503	lock ring b 8	6	$1.89
16	N0110088	hexagon nut m 8	6	$1.00
17	477253253D	retaining bracket	1	-
18	477253325A	clamp	1	$19.00
19	477253149C	bonded rubber buffer	2	$38.00
20	477253243	support	1	-
(20)	477253255C	support(AUT.)	1	-
21	N0103692	hexagon-head bolt m 8 x 58 heat shield see group 8/01/05	4	$2.90
