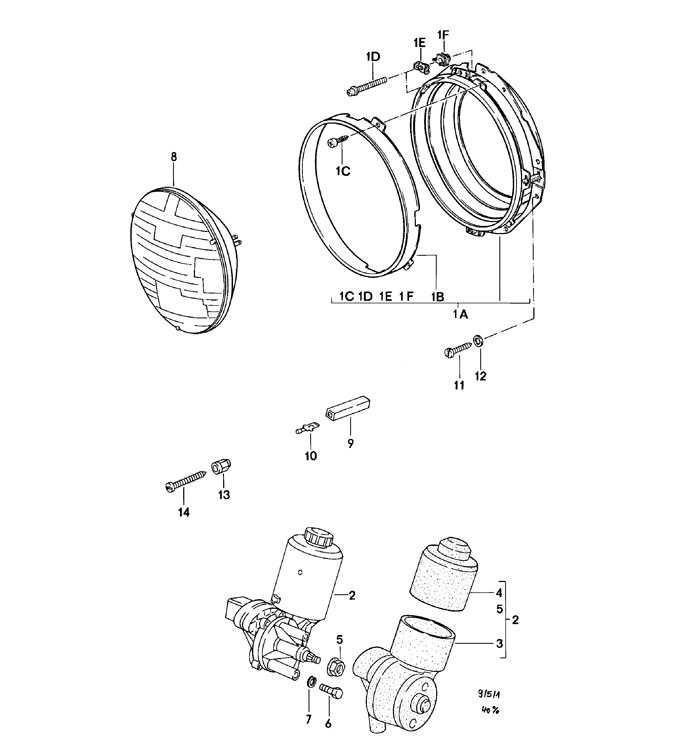

pop-up headlight electric motor for pop-up headlight (CDN) (USA)

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1A	477941050A	retaining frame	2	-
1B	111941049A	retaining ring	2	$49.51
1C	N01396111	tapping screw	6	$1.10
1D	477941143	adjusting screw	4	-
1E	477941145	retainer spring	4	-
1F	477941147	threaded piece	4	-
2	477941379B	electric motor for pop-up headlight	1	$287.50	924
(2)	477941379C	electric motor for pop-up headlight	1	$329.64	TURBO
3	477941386	protection cap lower	1	-	924
(3)	477941388	protection cap lower	1	-	TURBO
4	477941387	protection cap upper	1	$35.00
-	477941383	diode for electric motor pop-up headlight	X	$14.06
5	99908404502	lock nut m 6	1	$1.00
(5)	99908404902	lock nut m 8	1	$2.27
6	99907200501	hexagon-head bolt m 6 x 12	3	$1.06
7	N0120064	lock ring b 6	3	$1.00
8	99963112790	sealed-beam insert 12 v - 60/50 w(UP TO YEAR 80)	2	$28.00
(8)	99963112790	headlamp unit insert 12 v - 60/40 w(FROM YEAR 81 UP)	2	$28.00
9	111971977	plug with guide	6	$1.84
10	111971986	flat plug 6,3 x 0,8 with clip	6	$1.14
11	N0139644	tapping screw b 4,2 x 16	8	-
(11)	90014304100	tapping screw b 3,9 x 19	8	$1.10
12	90002500302	washer a 5,3	8	-
12	90002508001	washer a 5,3	8	$1.10
(12)	90002500203	washer a 4,3	8	$1.10
13	477857173	clip	2	-
14	N0439792	tapping screw bz 4,2 x 45 fog headlamp see group 9/98/00	2	-
