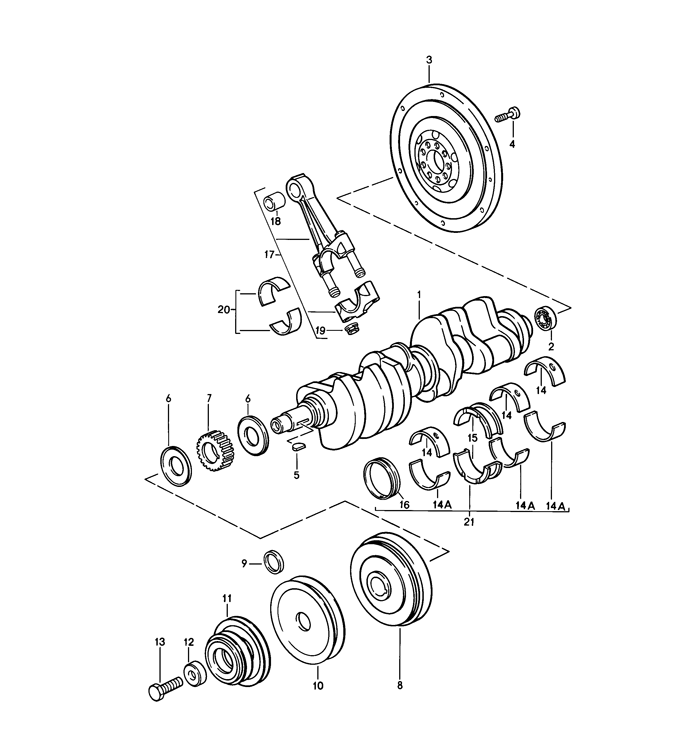

crankshaft connecting rod

POS Part Number Description Qty. Needed Price Model/Option Info
1 92810201128 crankshaft 1 $1,418.94
2 92810211102 deep-groove ball bearing 1 $13.00
3 92810220204 flywheel(UP TO YEAR 79) 1 $652.09
(3) 92810220210 flywheel(FROM YEAR 80 UP) 1 $906.89
3 92810220210 flywheel(FOR YEAR 1982 & up) 1 $906.89 M28.09YEARDESCRIPTION1980-19824.5L 8-CYL (928)M28.10YEARDESCRIPTION1980-19824.5L 8-CYL (928 AUTO. TRANS)
(3) 92810207500 flywheel(AUT.) 1 $1,023.35
4 92810215101 pan-head screw 9 $4.10
5 90011801400 woodruff key 1 $3.23
6 92810212502 flange washer 2 $8.89
7 92810512503 gear wheel vibration damper 1 -
8 92810212014 vibration damper(UP TO YEAR 79) 1 $205.90 -4
black - M28.01YEARDESCRIPTION1978-19794.5L 8-CYL (928)
(8) 92810212016 vibration damper(FROM YEAR 80 UP) 1 $958.73 -18
green-blue - M28.13YEARDESCRIPTION1980-19804.5L 8-CYL (928 (USA)(CANADA)(JAPAN))
(10) 92810211500 v-belt pulley 1 $150.77 -4
m >> 828 0812 - M28.01YEARDESCRIPTION1978-19794.5L 8-CYL (928)
m >> 828 9102(AUT.) -
(10) 92810211800 v-belt pulley m 828 0813 >>(UP TO YEAR 79) 1 $66.73
m 828 9103 >>(AUT.) -
10 92810211803 v-belt pulley(FROM YEAR 80 UP) 1 $91.05
11 92810213902 pulley for generator 928.603.114.00(FOR YEAR 1982 & up) 1 $416.98 M28.17YEARDESCRIPTION1981-19824.5L 8-CYL (928 (JAPAN))M28.18YEARDESCRIPTION1981-19824.5L 8-CYL (928 AUTO. TRANS (JAPAN))
(11) 92810213002 v-belt pulley(UP TO YEAR 81) 1 $173.47
(11) 92810213903 pulley for generator 928.603.114.00(FOR YEAR 1982 & up) 1 $336.48 M28.15YEARDESCRIPTION1981-19824.5L 8-CYL (928 (USA)(CANADA))M28.16YEARDESCRIPTION1981-19824.5L 8-CYL (928 AUTO. TRANS (USA)(CANADA))
12 92810212401 thrust washer 1 $28.49
13 90008303601 hexagon-head bolt 1 $11.26
14 main bearing X -
92810111515 upper half 2,4,5 $90.41
14 92810111550 main bearing shell upper half 2,4,5 undersize 0.25 mm X $105.66
14 92810111560 main bearing shell upper half 2,4,5 undersize 0.50 mm X -
14A main bearing X -
92810111515 lower half 2,4,5 $90.41
14A 92810111551 main bearing shell lower half 2,4,5 undersize 0.25 mm X $97.66
14A 92810111561 main bearing shell lower half 2,4,5 undersize 0.50 mm X $105.66
15 92810113303 thrust bearing 3 2 $241.23
15 92810113353 thrust bearing 3 undersize 0.25 mm X $241.23
15 92810113363 thrust bearing 3 undersize 0.50 mm X $289.50
16 92810111708 main bearing bush i 1 $153.32
16 92810111758 main bearing bush i undersize 0.25 mm 1 $146.03
16 92810111768 main bearing bush i undersize 0.50 mm 1 $153.27
17 92810300400 connecting rod 8 $343.52
18 92810313300 piston pin bush 8 $10.15
19 92810317202 connecting rod nut 16 $2.99
20 92810314315 conrod bearing shell 16 $65.59
20 92810314305002 conrod bearing shell 16 $89.95
20 92810314352 conrod bearing shell undersize 0.25 mm 16 $65.59
20 92810314357 conrod bearing shell undersize 0.25 mm(UP TO YEAR 80) 16 $65.59
20 92810314357 conrod bearing shell undersize 0.25 mm(FROM YEAR 81 UP) X $65.59
21 92810190101 1 set crankshaft bearing valid for engine with bearing 1 divided 1 -
21 92810190151 1 set crankshaft bearing undersize 0.25 mm valid for engine with bearing 1 divided 1 $246.52
21 92810190161 1 set crankshaft bearing undersize 0.50 mm valid for engine with bearing 1 divided 1 -
21 92810190102 set of crankshaft bearings valid for engine with bearing 1 closed 1 -
21 92810190152 set of crankshaft bearings undersize 0.25 mm valid for engine with bearing 1 closed 1 $743.97
21 92810190162 set of crankshaft bearings undersize 0.50 mm valid for engine bearing 1 closed 1 -
