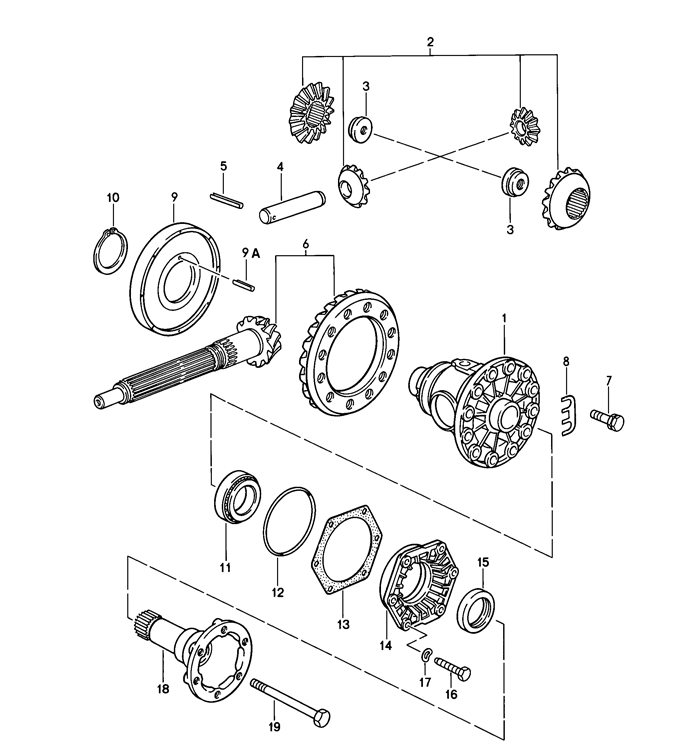

differential manual transmission

POS	Part Number	Description	Qty. Needed	Price
1	92833221204	differential housing	1	$1,340.12
2	92833290200	differential pinions 1 set g >> 111 1600	1	$798.58
2	95033290290	differential pinions 1 set g 111 1601 >>	1	$1,132.00
3	92833227902	nut g >> 111 1600	2	$32.47
3	92833227902	nut g 111 1601 >>	2	$32.47
4	00540917700	differential bolt g >> 111 1600	1	$86.97
4	92833220705	differential bolt 21 mm g 111 1601 >>	1	$75.50
5	90030903500	roll pin 5 x 40	1	$1.80
6	92830291126	ring gear and pinion shaft 12 : 33	1	$3,741.72
7	92833227600	hexagon-head bolt	12	$8.79
8	92833228500	tab washer	6	$7.94
9	92831802402	carrier disc with magnets	1	$132.20
9A	N0432851	roll pin 5 x 20	1	$3.67
10	99915208901	circlip	1	$5.46
11	99905902702	taper roller bearing	2	$29.46
12	92833221702	o-ring	2	$7.92
13	92833221900	adjusting shim 0,15 mm	X	$19.38
(13)	92833221901	adjusting shim 0,20 mm	X	$20.63
(13)	92833221902	adjusting shim 0,25 mm	X	$16.87
(13)	92833221903	adjusting shim 0,30 mm	X	$12.00
(13)	92833221904	adjusting shim 0,10 mm	X	$19.25
14	92833221302	housing	2	$123.90
15	92833221502	shaft sealing ring	2	$39.79
16	90007509903	hexagon-head bolt	12	$1.78
17	N0122418	spring washer	12	$1.00
18	92833220600	joint flange	2	$351.91
19	90007429202	hexagon-head bolt m 10 x 100(UP TO YEAR 80)	2	$5.46
19	90007429202	hexagon-head bolt m 10 x 98(FROM YEAR 81 UP)	2	$5.46
