103-03

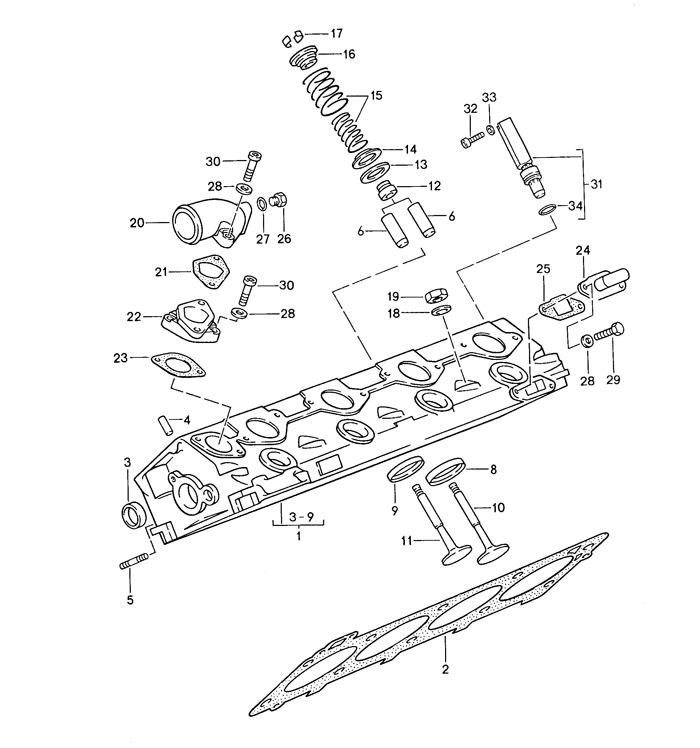

M44.52 cylinder head valves

POS	Part Number	Description	Qty. Needed	Price
1	95110403804	cylinder head	1	$594.80
2	95110437402	cylinder head gasket	1	$63.35
(2)	95110437450	cylinder head gasket for recond. cylinder heads	1	$116.75
3	90003600502	lid	2	$5.37
4	90030201900	straight pin	2	-
5	99906204402	stud m 8 x 30	8	$5.00
6	94410432851	valve guide 1st oversize	8	$6.50
8	95110433150	valve seat ring intake oversize	4	$26.86
9	95110433351	valve seat ring exhaust oversize	4	$19.48
10	95110541500	intake valve	4	$51.00
11	95110541607	exhaust valve	4	-
-	00004320448	sleeve for valve stem seal	X	$3.32
12	95110419501	valve stem seal	8	$3.50
13	92810546803	washer 0,5 mm	X	$1.30
13	92810547003	washer 1,0 mm	X	$1.67
14	92810546906	washer	8	$12.73
15	95110590510	set of valve springs	8	$19.17
16	92810544904	concave washer	8	-
17	90110541700	collet	16	$1.00
18	94410422900	washer	10	$2.50
19	99907604302	hexagon nut m 12 x 1,5	10	$1.85
20	95110431500	cooling water socket	1	$117.07
21	95110431103	gasket	1	$7.00
22	95110431300	intermediate piece	1	$83.90
23	94410431106	gasket	1	$8.00
24	94410431705	adapter	1	-
25	92810619704	gasket	1	$3.59
26	93110615600	screw plug	1	-
27	N0138307	sealing ring a 8 x 12	1	$5.96
28	90002500703	washer a 8,4	6	$0.79
29	N0447041	pan-head screw m 8 x 28	4	$7.55
30	N0147772	pan-head screw	4	$2.75
31	94410723901	pressure relief valve	1	$681.88
32	N91145401	pan-head screw	1	$1.10
33	N0138412	sealing ring	1	$3.08
34	99970707840	o-ring	1	$10.89
-	92811012801	thermo valve	1	$47.32
-	N0138083	sealing ring	1	$1.67
