103-07

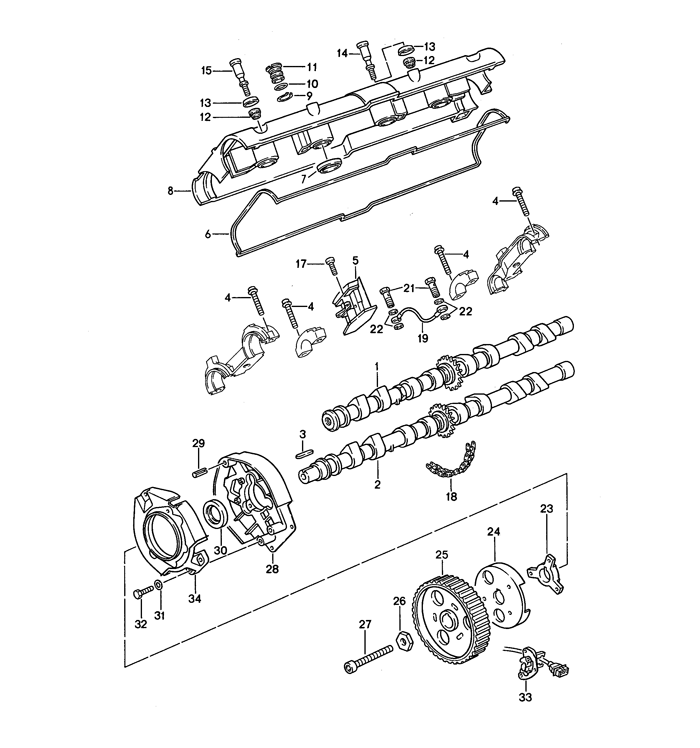

M44.41 camshaft

POS	Part Number	Description	Qty. Needed	Price
1	94410527707	camshaft intake	1	$771.74
2	94410527509	camshaft exhaust	1	$661.25
3	90011707300	feather key	1	$1.98
4	99951002902	combination screw m 8 x 40	24	$6.00
5	94410504901	chain adjuster	1	$638.63
(()	92810550901	guide rail upper	1	$15.50
(()	94410594900	guide rail repair kit	1	$136.42
6	92810444709	gasket	1	$12.00
7	92810444308	sealing ring	4	$2.00
8	92810446108	cylinder head cover	1	-
9	N0124201	circlip	2	$2.53
10	90017405640	o-ring	2	$1.85
11	92810448501	lid	2	$10.65
12	92810411502	thrust ring	13	$1.00
13	92810411600	thrust washer	13	$2.17
14	92810411701	pan-head screw long	10	-
15	92810411102	pan-head screw short	3	$10.47
17	N91145401	pan-head screw	2	$1.10
18	94410550105	timing chain	1	$19.44
19	94410516707	pipeline	1	$191.42
21	92810547604	banjo bolt	2	$39.89
(21)	92810547604	banjo bolt	2	$39.89
22	90012305030	sealing ring	4	$1.80
23	92810545900	hub	1	-
24	94410522903	rotor trim	1	$34.11
25	94410554512	camshaft timing gear	1	-
26	92810545702	washer	1	-
27	99951002208	pan-head screw	1	$1.75
28	94410517910	toothed belt covering	1	$597.40
29	99909510301	roll pin	1	$1.65
30	99911328240	shaft sealing ring	1	$7.00
31	90002500703	washer	3	$0.79
32	90007501402	hexagon-head bolt	3	-
33		hall sender see group 9/01/01		-
34	94410518905	toothed belt covering	1	$277.44
-	94410513101	stopper	1	$9.77
