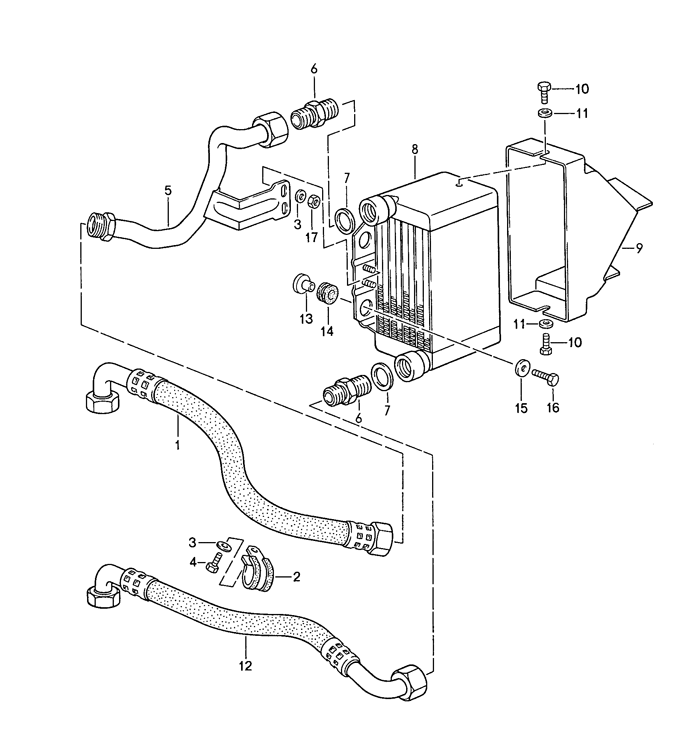

M44.52 oil cooling

POS	Part Number	Description	Qty. Needed	Price
1	95120711301	oil pipe f >>95kn1 01308 f >>95kn1 51357	1	-
1	95120711303	oil pipe f 95kn1 01309>>95ln1 00350 f 95kn1 51358>>95ln1 50119(UP TO YEAR 89)	1	$309.74
1	95120711302	oil pipe f 95ln1 00351>> f 95ln1 50120>>(FROM YEAR 90 UP)	1	$520.39
2	N0206471	clamp	1	$8.87
3	N0115247	washer	1	$1.10
3	N01152427	washer	1	$1.00
4	N01021513	hexagon-head bolt	1	$1.10
5	95120711202	oil pipe	1	$399.92
6	90091510102	screw socket	2	-
7	90012301130	sealing ring a 22 x 27	2	$1.00
8	95120730902	oil cooler	1	$189.75
9	95120731103	air duct	1	$61.93
10	N01021013	hexagon-head bolt m 6 x 10 m 6 x 10	2	$1.00
11	90015100603	washer b 6,4	2	$1.00
12	95120711103	oil pipe	1	-
13	95120711400	spacer sleeve	2	-
14	056129669B	grommet	2	$9.88
15	N0116123	washer r 7	2	-
15	N011612C	washer r 7	2	-
16	90007534102	combination screw m 6 x 25	2	-
16	90007534101	combination screw m 6 x 25	2	$1.23
17	N02214812	hexagon nut	2	$1.74
17	9000760100B	hexagon nut	2	$1.06
