105-05

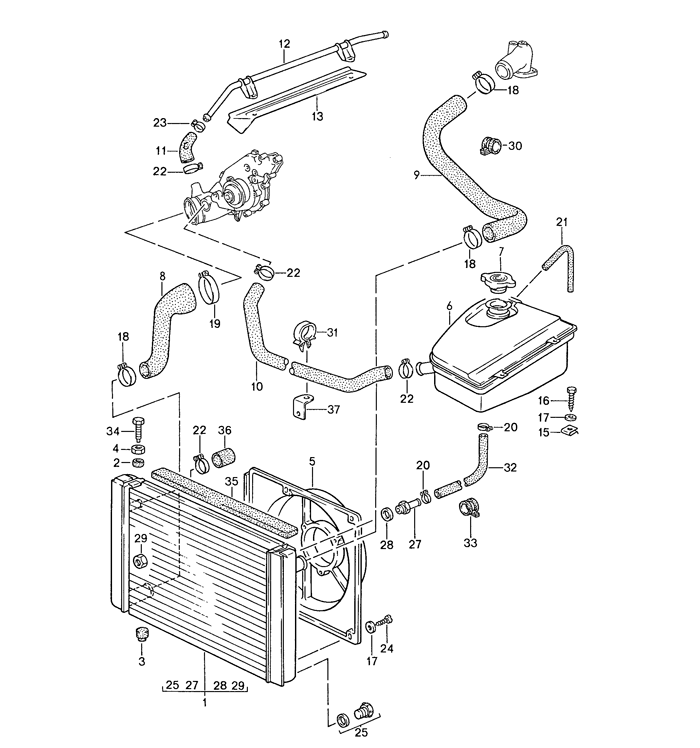

M44.11/12 water cooling

POS	Part Number	Description	Qty. Needed	Price
1	94410603103	radiator	1	-
1	94410602706	radiator(AUT.)	1	-
2	95110605300	rubber mounting	2	$11.00
3	95110610700	rubber mounting	2	$5.50
4	90007606402	hexagon nut	2	$1.00
5	94410614302	airscoop for air conditioner	1	$116.22
6	94410612506	expansion tank	1	$169.50
7	94410625700	lid	1	$25.31
8	94410623707	water hose	1	$9.90
9	94410623907	water hose	1	$14.35
10	94410621501	water hose	1	$130.90
11	94410624103	water hose	1	$1.85
12	94410624303	water tube	1	$123.55
13	94410624700	heat shield(AUT.)	1	$44.09
15	477955461	speed nut	2	$2.35
16	N0901721	combination screw 6,3 x 19	2	$2.22
16	N0901726	combination screw 6,3 x 19	2	$3.10
17	N0115247	washer a 6,4	6	$1.10
17	N01152427	washer a 6,4	6	$1.00
18	99951250000	hose clamp 32 - 50	3	$1.82
19	99951239000	hose clamp 60 - 80	1	$2.54
20	9002720020B	hose clamp 10 - 16	3	$4.71
21	94410625100	water hose	1	$4.00
22	99951239200	hose clamp 23 - 35	4	$2.42
23	99951234600	hose clamp 16 - 25	1	$2.02
24	90018711101	combination screw 6,3 x 12	4	$1.65
25	94410635301	screw plug m 10 x 1,5	1	$5.00
27	94410692700	screw socket	1	$5.60
28	94410692800	sealing ring	1	$4.96
29	94410635500	nut(AUT.)	2	$7.66
30	99951113002	pipe clamp 44/20	1	$9.28
31	321971847A	clip	1	$2.23
32	94410624901	water hose	1	$19.50
33	99951117701	clamp b 15	1	$7.59
34	90004600402	hexagon-head bolt	2	$3.48
35	94455683700	sealing rubber	1	-
36	94410610302	cap	1	$12.82
37	477971881B	retaining bracket	1	$5.75
