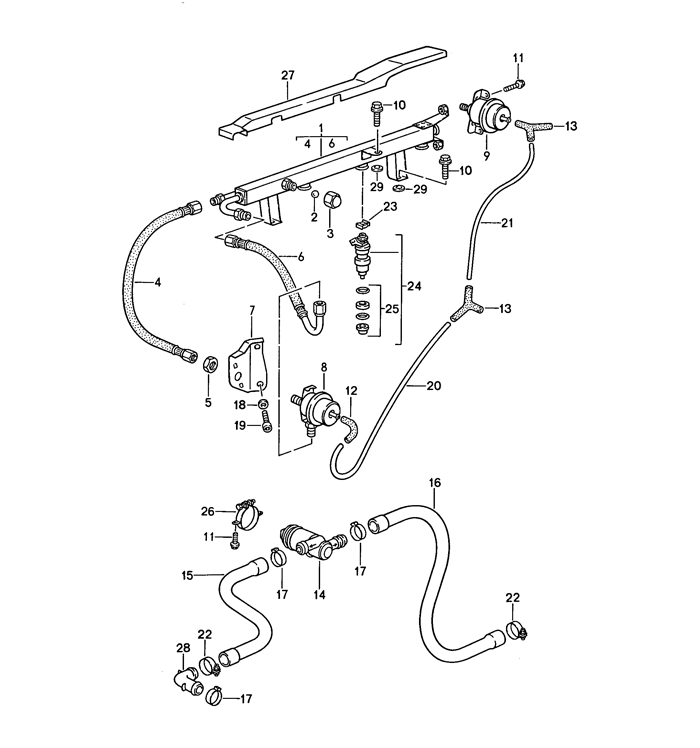

M44.41 l-jetronic

POS	Part Number	Description	Qty. Needed	Price
1	94411008012	fuel collection pipe	1	-
2	90010802200	ball	1	$1.69
3	92811047504	cap nut	1	-
4	94411038403	fuel line	1	-
5	90003401302	hexagon nut bm 16 x 1,5	1	$9.09
5	90003401301	hexagon nut bm 16 x 1,5	1	$8.18
6	94411038404	fuel line	1	-
7	94411038103	support	1	-
8	94411020104	diaphragm damper	1	-
9	94411019806	pressure regulator	1	$548.82
10	90007535501	combination screw	3	$1.50
11	90007545601	combination screw m 6 x 16	2	$5.63
12	92857471705	moulded hose	2	-
13	92857372705	y-piece	2	$19.54
14	96460616000	idle-speed adjuster	1	$179.50
15	94411023502	moulded hose	1	$81.86
16	94411021404	moulded hose	1	$83.36
17	99951245500	hose clamp	3	$7.59
18	N0115247	washer	2	$1.10
18	N01152427	washer	2	$1.00
19	90006742901	pan-head screw	2	$5.58
-	00004320501	pipe 4 x 1	*	$11.53
20		230 mm	1	-
21		500 mm	1	-
22	99951225202	hose clamp sgl 23 - 35/9	2	$2.00
23	93011038801	retaining clip	4	$2.50
24	94460611201	injector valve(UP TO YEAR 90)	4	$528.94
24	94460612000	injector valve(FROM YEAR 91 UP)	4	$259.19
25	94411090100	gasket set for injector valve(UP TO YEAR 90)	4	$11.55
26	94411014700	clamp	1	$13.35
27	94460701001	cover	1	$88.15
28	94411021201	connecting piece	1	$11.56
29	99902522030	spacer 3(UP TO YEAR 90)	1	-
