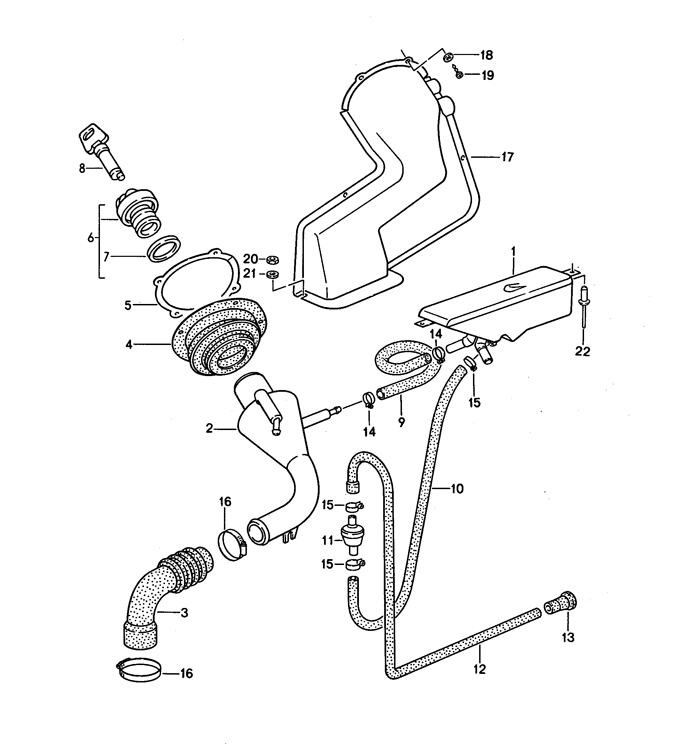

CABRIO filler neck

POS Part Number Description Qty. Needed Price Model/Option Info
1 94120116511 expansion tank 1 $40.25
2 94120104314 filler neck 1 $147.70
3 94120135310 bellows 1 $40.25
4 94120134910 sealing rubber 1 -
5 94120139310 support 1 $21.58
6 94420106101 fuel tank cap 1 $7.75
7 94420155300 gasket 1 -
8 477201594 lock cylinder with key w/o stipulated lock number 1 $179.97
8 477201594A lock cylinder with 1 key state lock number 1 $227.74
9 94120171710 hose 1 $148.13
10 94120171511 hose 1 $199.69
11 92820108302 shut-off valve 1 $62.50
12 94420115901 breather hose it is necessary to rework 1 $93.61
13 321201890A end piece 1 -
14 99951248200 hose clamp 9 x 21 2 $4.27
15 PCG0235692 hose clamp ar 9 x 16 3 $2.55
16 113201281B hose clamp 2 $4.46
17 94120114910 cover 1 $100.88
18 90015102801 washer 4,3 2 $3.95
19 N0139575 tapping screw b 3,5 x 9,5 2 $1.77
20 90007609101 hexagon nut m 5 2 $1.00
21 N0116653 washer b 51 2 -
22 94120127310 rivet 2 $1.82
