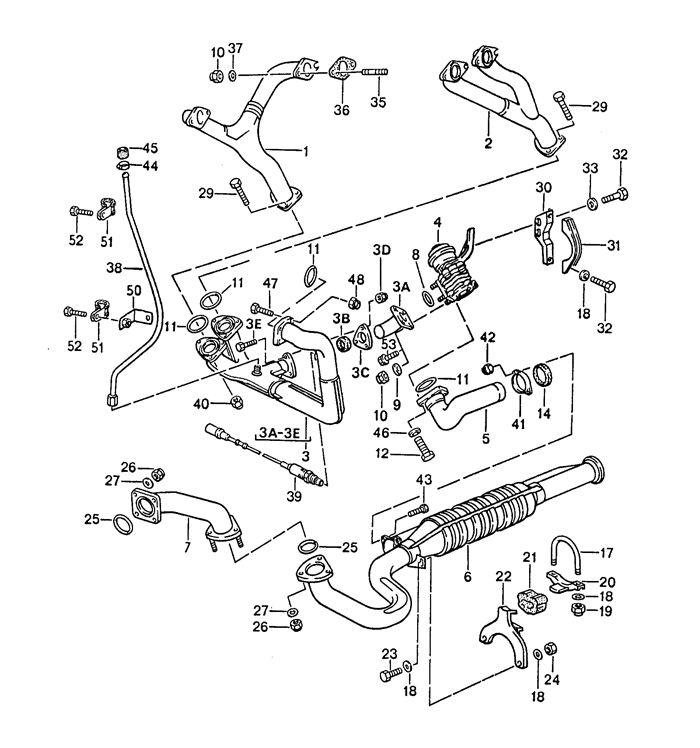

M44.52 exhaust system catalytic converter

POS Part Number Description Qty. Needed Price Model/Option Info
1 95111113106 exhaust manifold cylinders 1 and 4 1 $842.14
2 95111113304 exhaust manifold cyl. 2 and 3 1 $1,381.46
3 95111109615 exhaust pipe 1 $3,066.60
3A 95112302701 exhaust pipe 1 $428.73
3B 93012313404 gasket 1 $12.10
3C 95112326001 flange 1 $182.60
3D 99908405102 lock nut 3 $12.60
3E 90007426702 hexagon-head bolt 3 -
4 95112301504 wastegate(UP TO YEAR 89) 1 $3,696.09
4 95112301504 wastegate(FROM YEAR 90 UP) 1 $3,696.09
5 95112304006 exhaust pipe 1 $1,217.53
6 95111109411 catalytic converter 1 $668.53
7 95111109801 exhaust pipe 1 $1,444.63
8 99311119500 sealing ring 1 $4.00
9 99902507802 washer X $5.46
10 99908405202 lock nut 10 $3.25
11 94411120504 sealing ring 4 $21.71
12 90007507902 hexagon-head bolt m 8 x 25 4 $1.90
14 95112313402 gasket 1 $11.17
17 47725313900 clip 1 $23.00
18 90002500703 washer 6 $0.79
19 90091000302 lock nut 2 $1.00
20 94411130700 support 1 $21.74
21 94411114202 rubber mounting 1 $21.00
22 95111106101 hook 1 $30.34
23 90007508703 hexagon-head bolt m 8 x 15 2 $1.19
24 90007606402 hexagon nut 2 $1.00
25 94411120503 sealing ring 2 $19.50
26 99908404702 lock nut 8 $4.00
27 90002500804 washer 8 $1.00
29 90007428202 hexagon-head bolt 6 $2.75
30 95112315502 support 1 $36.62
31 95112317902 clip 1 -
32 90007508502 hexagon-head bolt m 8 x 20 2 $1.00
33 90022300102 washer 2 $2.09
34 90007508502 hexagon-head bolt m 8 x 20 2 $1.00
35 99906204402 stud 8 $5.00
36 94411119704 gasket 4 $9.15 WW
37 92811118100 washer 4 $2.61
38 95111117502 exhaust emission tube 1 -
39 95160613500 oxygen sensor 1 $105.73
40 99908405202 lock nut 6 $3.25
41 95112313801 flange 1 -
42 90091009602 lock nut m 6 2 $16.60
43 90007423402 hexagon-head bolt m 6 x 40 2 $29.04
44 PCG51216002 hose clamp 1 $6.18
45 034133335D cap 1 $5.00
46 N0120091 lock ring 1 $1.34
47 N0100202 hexagon-head bolt 4 $1.50
48 N90073001 lock nut 3 -
50 94411117702 support 1 $3.87
51 N0206093 clip 2 $4.95
52 99907200501 hexagon-head bolt m 6 x 12 2 $1.06
53 90007542002 hexagon-head bolt 4 -
