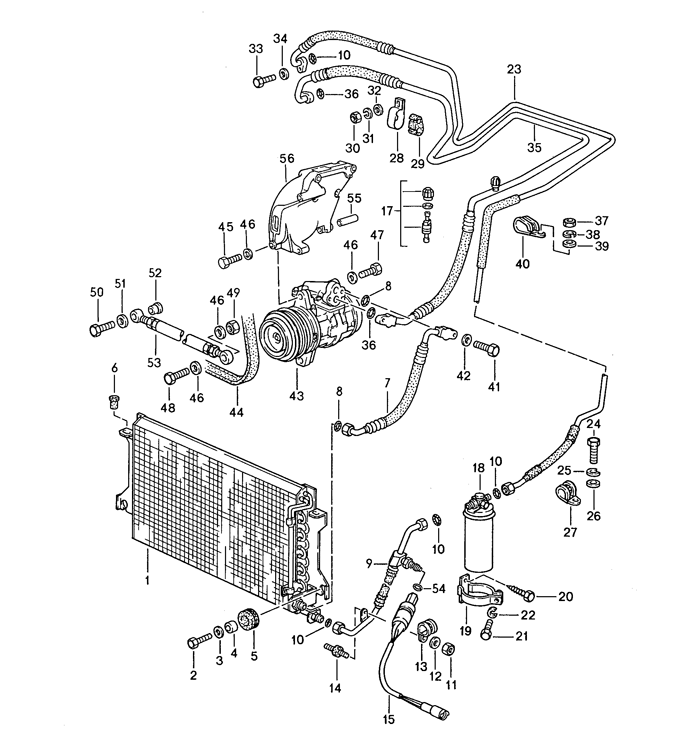

M573 refrigerant circuit

POS Part Number Description Qty. Needed Price Model/Option Info
1 94457301105 condenser 1 $650.00
2 90037803001 hexagon-head bolt m 6 x 20 2 $1.10
3 N0116123 washer r 6,6 2 -
3 N011612C washer r 6,6 2 -
4 52109135 spacer sleeve 2 $8.07
5 056129669B grommet 2 $9.88
6 94457345700 rubber sleeve 2 $13.40
7 94457309711 refrigerant line 1 $189.95
8 99970743441 o-ring 2 $1.00
9 94457309510 refrigerant line 1 -
10 99970724740 o-ring 4 $1.00
11 N02214812 hexagon nut m 6 1 $1.74
11 9000760100B hexagon nut m 6 1 $1.06
12 90002500804 washer a 6,4 1 $1.00
13 N0206471 clamp rsgu 23/15 1 $8.87
14 99970326100 bonded rubber buffer 1 $7.50
15 96461313700 pressure switch 1 $103.75
17 92857309603 valve 1 $38.13
18 94457394300 desiccator 1 $12.70
19 94457308100 support 1 -
20 N0138845 tapping screw b 4,8 x 13 2 $1.70
21 N0102644 hexagon-head bolt m 5 x 20 1 $1.00
22 N0120053 lock ring b 5 1 $1.00
23 94457309305 refrigerant line 1 -
24 N01021513 hexagon-head bolt m 6 x 15 1 $1.10
25 N0120064 lock ring b 6 1 $1.00
26 N0115247 washer a 6,4 1 $1.10
26 N01152427 washer a 6,4 1 $1.00
27 99951111603 clamp b 15 x 10 gi 1 $7.59
28 94457345300 support 1 $7.48
29 94457345500 spacer rubber 1 $7.59
30 N02214812 hexagon nut m 6 1 $1.74
30 9000760100B hexagon nut m 6 1 $1.06
31 N0120064 lock ring b 6 1 $1.00
32 N0115247 washer a 6,4 1 $1.10
32 N01152427 washer a 6,4 1 $1.00
33 90007501603 hexagon-head bolt m 6 x 22 2 $1.00
34 N0115247 washer a 6,4 2 $1.10
34 N01152427 washer a 6,4 2 $1.00
35 94457309108 refrigerant line 1 $574.28 944,944S2
(35) 95157309102 refrigerant line 1 - TURBO
36 99970725140 o-ring 2 $1.00
37 N02214812 hexagon nut m 6 1 $1.74
37 9000760100B hexagon nut m 6 1 $1.06
38 N0120064 lock ring b 6 1 $1.00
39 N0115247 washer a 6,4 1 $1.10
39 N01152427 washer a 6,4 1 $1.00
40 N90251201 pipe clamp rsgw 1,5 x 15/15 1 -
41 N0402221 hexagon-head bolt m 8 x 32 1 $10.32
42 90002500703 washer a 8,4 1 $0.79
43 94412600800 compressor 1 $668.77
44 99919229950 poly-rib belt k 6 - 1000 lw 1 $13.15
45 90008208802 hexagon-head bolt m 10 x 1,25 x 50 1 -
45 90008214601 hexagon-head bolt m 10 x 1,25 x 50 1 -
46 90002500804 washer a 10,5 4 $1.00
47 90007413903 hexagon-head bolt m 8 x 55 1 $2.68
48 N0401251 hexagon-head bolt m 10 x 1,25 x 30 1 $5.52
49 90091003402 lock nut m 10 1 $1.86
50 N0103594 hexagon-head bolt m 8 x 38 1 $3.17
51 90002500703 washer a 8,4 1 $0.79
52 94412612701 bush 1 -
53 94412602103 strut 1 $49.00
54 99970726140 o-ring 1 $1.00
55 94412613500 sleeve 1 $18.41
56 94412612306 bracket 1 $288.27
