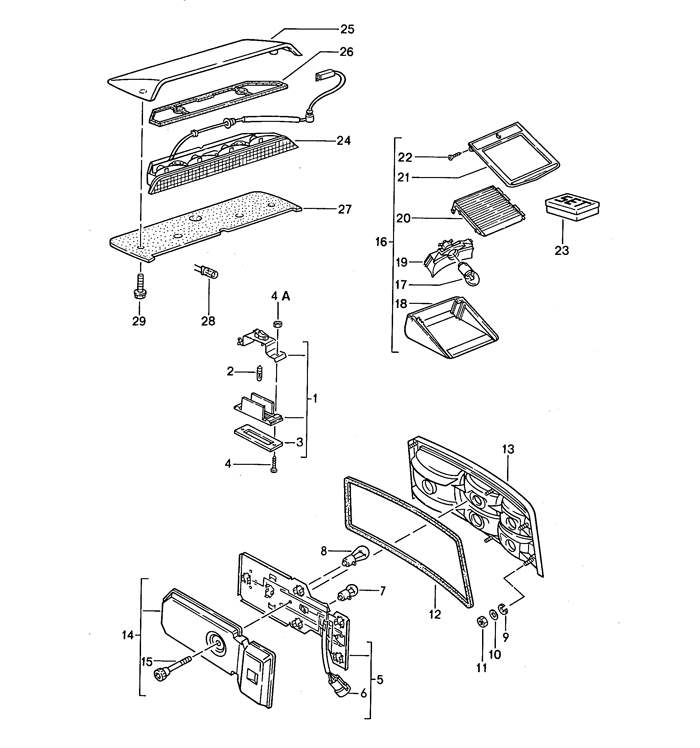

COUPE, CABRIO license plate light rear light additional brake light

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1	477943021A	license plate light	2	$46.00
2	90063110390	bulb hl 12 v, 4 w	2	$1.40
3	477943131	gasket	2	-
4	90014604107	oval-head screw m 3 x 15	4	$5.50
4A	N0411841	lock nut	4	-
(5)	477945113A	bulb holder(DRIVER SIDE)	1	$37.95
(5)	477945114A	bulb holder(PASSENGER SIDE)	1	$44.28
6	803971980	pin connector socket 7-pole	2	$5.02
7	90063110490	bulb g 12v 5w	2	$1.00
8	90063112790	bulb rl 12v, 21w	7	$1.00
9	N0120053	lock ring b 5	12	$1.00
10	N0122224	spring washer b 5	12	$1.00
11	90007609101	hexagon nut m 5	12	$1.00
12	4317200	sealing cord 9 mm $ roller 10 m	*	$104.93
12		1070 mm	2	-
(13)	477945213	housing with lens(DRIVER SIDE)	1	$206.70
(13)	477945214	housing with lens(PASSENGER SIDE)	1	$206.70
14	477945285	cap with knurled screw	2	$17.25
15	477945285	cap	2	$17.25
16	92863107000	additional brake light	1	$304.62	COUPE
17	90063112790	bulb 12v 21w	1	$1.00
18	92863146000	housing for light	1	$13.31
19	92863147100	reflector	1	$25.45
20	92863147200	lens	1	-
21	92863106100	frame for light	1	$40.10
22	90014509907	rais. counters. h. tap. s. b 2,9 x 13	2	$1.10
24	94163126110	lamp insert for additional brake light	1	$377.25	CABRIO
25	94163191100	housing	1	$177.27
26	94163191130	gasket	1	-
27	94163191110	gasket	1	-
28	94163191120	bulb	1	$17.44
29	99921712702	combination screw m 6 x 20	2	$1.29
