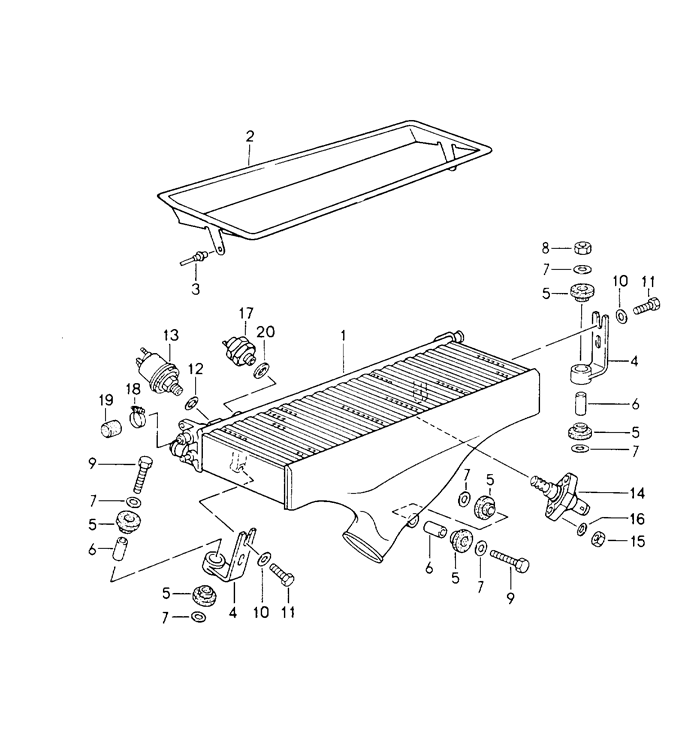

M30.69, M64.50 charge air cooler

POS	Part Number	Description	Qty. Needed	Price
1	93011033001	charge air cooler	1	-
2	96411003420	air duct	1	$545.15
3	99919039530	blind rivet	2	$1.24
4	93011022302	support	2	$55.08
5	93011343000	rubber mounting	6	$11.75
6	93011023200	spacer sleeve	3	$27.03
7	90015100802	washer 8,4 8,4	6	$1.00
8	90091000301	lock nut m8	1	$1.00
9	90007413002	hexagon-head bolt m 8 x 40	1	$1.21
10	90002500703	washer a 8,4	2	$0.79
11	90007508502	hexagon-head bolt m 8 x 20	1	$1.00
11	90007535802	hexagon-head bolt m 8 x 20	1	$1.15
12	90012310630	sealing ring a 18 x 24(UP TO YEAR 92)	1	$1.00
12	90012310630	sealing ring a 18 x 24	1	$1.00
13	99360610301	pressure transmitter boost pressure	1	$177.15
14	96560611600	temperature sensor	1	$471.21
15	90091004709	lock nut m 6	2	$1.00
16	N0115247	washer a 6,4	2	$1.10
16	N01152427	washer a 6,4	2	$1.00
17	93060610100	switch boost pressure	1	$82.00
18	99951234600	hose clamp 22 x 9	1	$2.02
19	93011025601	cap	1	$22.53
20	90012314430	sealing ring a 10 x 13,5	1	$1.00
