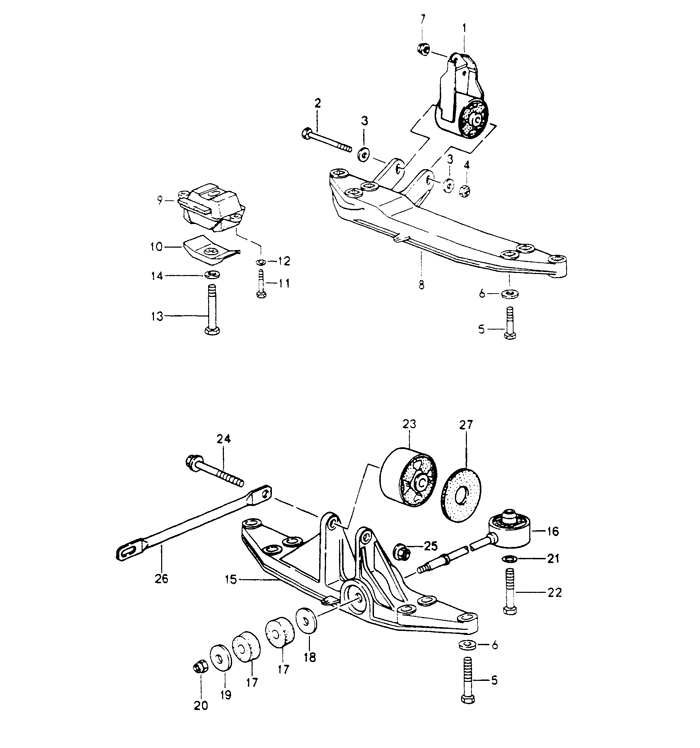

transmission suspension G64.00/01/02

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1	96437502301	bearing bracket	1	$345.22
2	90007429202	hexagon-head bolt m10 x 100	1	$5.46
3	99902519502	washer 10,3 x 25 x 3	2	$5.65
4	90091003101	lock nut m10	1	$6.31
5	90007551301	hexagon-head bolt m10 x 60 m10 x 60	6	$5.43
6	99902519602	washer 10,3 x 28 x 5	6	-
7	90038000801	hexagon nut m10	3	$3.84
8	96437531301	bracket	1	-
9	96437505301	bearing bracket	1	$105.11
10	96437518301	stop	1	$6.97
11	90007413402	hexagon-head bolt m8 x 45	2	$3.43
12	90002500703	washer a 8,4	2	$0.79
13	90008214001	hexagon-head bolt m12 x 1,5 x 75	1	$7.71
(13)	90008214001	hexagon-head bolt m12 x 1,5 x 75	1	$7.71
14	99902521502	washer 12,1 x 26/26 g50.03/04/05 g50.10/52	1	$10.02
15	96437530905	transmission carrier	1	$573.33
16	96437507003	bracket	1	$401.17
17	96437521101	rubber buffer	2	$67.90
18	99902518202	washer 13,2 x 44 x 5	1	$35.53
19	99902518102	washer 10,1 x 44 x 5	1	-
20	N021130D	lock nut vm 10	1	-
21	90002500902	washer a 13 a 13	1	-
22	90008210901	hexagon-head bolt m 12 x 1,5 x 65	1	$6.03
23	96437505502	transmission mounting	1	$165.00	G50.03/04/05
			1	-	G50.52
23	96437505580	transmission mounting	1	$148.50	G50.10
24	90037802702	hexagon-head bolt m 12 x 1,5 x 95	1	$25.07
25	90038001001	lock nut m 12 x 1,5	1	$6.34
26	99350462100	strut	2	-
27	96437525500	stop	2	$12.63
(()	90007519902	hexagon-head bolt m 12 x 22	2	$3.15
(()	90002500902	washer a 13 a 13	2	-
