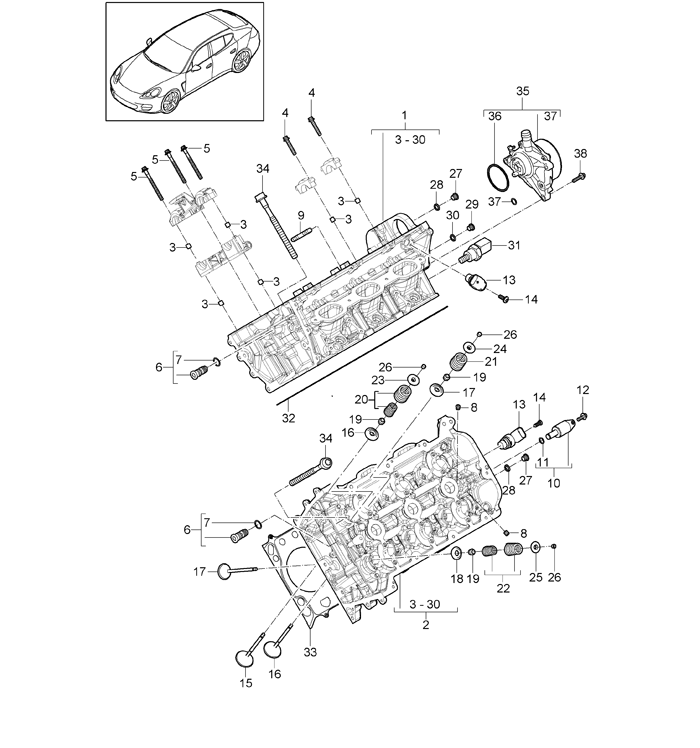

MCW.DA/FA cylinder head vacuum pump

POS Part Number Description Qty. Needed Price Model/Option Info
1 94610401578 cylinder head with spark plug cyl. 1 - 3 1 -
2 94610401678 cylinder head with spark plug cyl. 4 - 6 1 -
3 94410436100 dowel sleeve 8,5 x 1 x 8,5 30 $5.25
(3) 99909507100 dowel sleeve 12 x 1 x 10 2 $9.50
4 99907336301 torx screw m 6 x 35 24 $3.84
5 90038502701 torx screw bm 6 x 70 6 -
6 94810425001 restrictor 2 $33.22
7 99970757740 o-ring 10,0 x 2,5 2 -
8 90006301000 screw plug m 8 x 1 4 $9.81
9 99906000101 threaded bolt mfs 8 x 42 18 $4.46
10 94810530803 actuator valve 2 $249.54
11 99970158240 o-ring 11,5 x 1,8 2 $15.26
12 90038511201 torx screw bm 5 x 12 4 $3.84
13 94660610600 hall sender 4 $181.14
14 99907390231 oval-head screw aluminium m 6 x 16 4 $1.66
15 94810532102 intake valve uncoated lŽnge 107,7 mm 6 $88.29
16 94810532115 intake valve coated lŽnge 112,8 mm 6 $88.29
17 94810532252 exhaust valve 12 $113.61
16 94810515101 concave washer lower intake 6 $14.84
17 94810515351 concave washer lower intake 6 -
18 94810515351 concave washer lower exhaust 12 -
19 99610511552 valve stem seal 24 $0.75
20 94810509402 set of valve springs intake 6 $19.34
21 94610541600 valve spring intake 6 $19.45
22 94810509552 set of valve springs exhaust 12 $19.34
23 94810515001 concave washer upper intake 6 $14.84
24 94810515251 concave washer upper intake 6 $14.84
25 94810515251 concave washer upper exhaust 12 $14.84
26 99610512352 valve collet 48 $1.10
27 90021902301 screw plug m 10 x 1 2 $3.84
28 90012314430 sealing ring a 10 x 13,5 2 $1.00
29 90021900601 screw plug m 12 x 1,5 2 -
30 90012300530 sealing ring a 12 x 16 2 $1.73
31 94860642000 temperature sensor water cooling 1 $45.55
32 94610417301 cylinder head gasket cyl. 1 - 3 1 -
33 94610417401 cylinder head gasket cyl. 4 - 6 1 -
34 94810418110 pan-head screw m 11 x 1,5 x 140 16 $18.01
35 94811005006 vacuum pump 1 $166.44
36 99970758141 o-ring 54 x 3 1 $12.23
37 99970758241 o-ring 13 x 3 1 $4.93
38 90038507201 torx screw m 6 x 25 3 -
