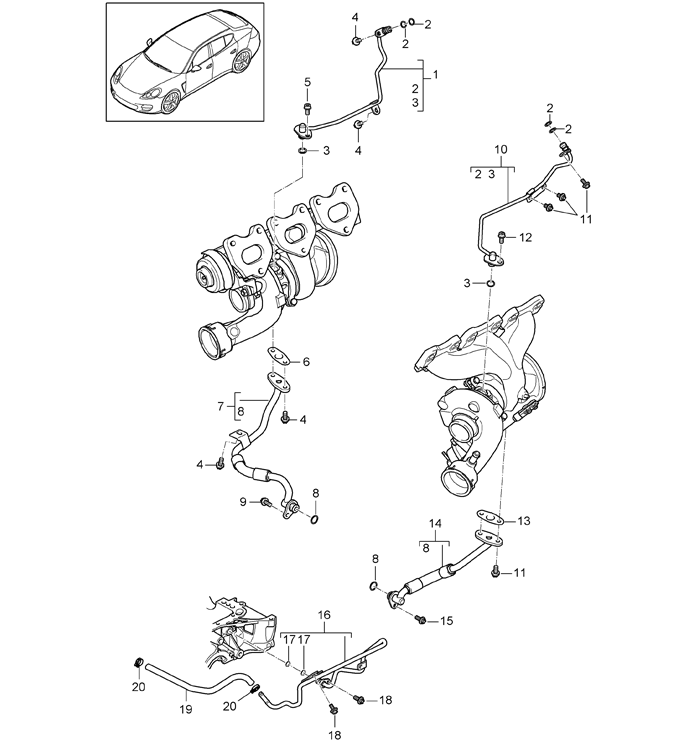

MCW.DA/FA oil pipe for turbocharger

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1	94610708660	pressure line cyl. 1 - 3	1	$217.40
2	99970761340	o-ring 8 x 2,5	4	$6.62
3	99970760340	o-ring 10 x 3	2	$3.84
4	90038504101	torx screw bm 6 x 12	5	-
5	N10544703	pan-head screw m 6 x 10	1	$1.10
6	94810712350	gasket	1	$6.45
7	94610708861	oil pipe cyl. 1 - 3	1	-
8	99970756840	o-ring 12 x 3	2	-
9	90038500901	torx screw bm 6 x 16	1	-
10	94610708760	pressure line cyl. 4 - 6	1	-
11	90038504101	torx screw bm 6 x 12	5	-
12	N10544703	pan-head screw m 6 x 10	1	$1.10
13	94810712350	gasket	1	$6.45
14	94610708960	oil pipe cyl. 4 - 6	1	-
15	90038500901	torx screw bm 6 x 16	1	-
16	94610726067	ventilation pipe cyl. 4 - 6	1	$184.91	I339
(16)	94610726061	ventilation pipe cyl. 1 - 3	1	$184.91	I338
17	99970760340	o-ring 10 x 3	2	$3.84
18	90038504101	torx screw bm 6 x 12	2	-
(18)	99907390331	oval-head screw aluminium m 6 x 20 mount ventilation pipe cyl. 1 - 3 control box cover	1	$1.66	I338
19	97011025960	vent hose	1	-	I339
(19)	97011025965	vent hose	1	-	I338
20	99951248900	hose clamp 15,3 - 18,5	2	$7.59
