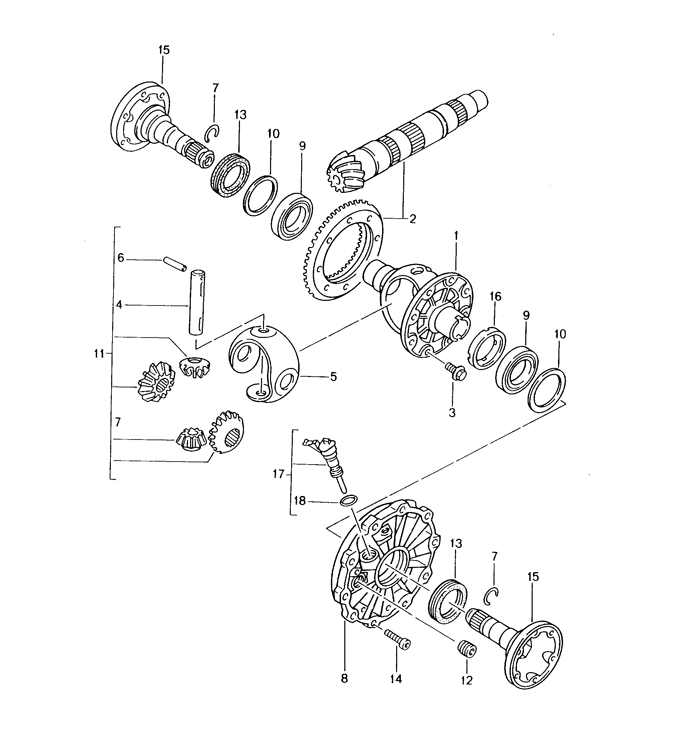

G86.00/01, CWA/DVY/EFD, GDW/GFW differential transmission classification letter attention

POS Part Number Description Qty. Needed Price Model/Option Info
1 012409121M differential housing 90 mm 1 $492.46 CWA
(1) 012409121M differential housing 90 mm g >> 10 01 9 1 $492.46 DVY
(1) 012409121L differential housing 90 mm g 11 01 9 >> 1 $492.46 DVY/EFD/GDW
(1) 01X409121A differential housing 90 mm 1 $611.45 GFW
2 012409143AR ring gear and pinion shaft 35 : 9 1 $1,535.43 CWA
2 012409143CA ring gear and pinion shaft 35 : 9 1 $1,535.43 DVY
2 012409143CQ ring gear and pinion shaft 32 : 9 1 $1,145.38 EFD/GDW
(2) 012409143EJ ring gear and pinion shaft 32 : 9 1 $1,330.26 GFW
3 N90361401 hexagon-head bolt m 10 x 1 x 22,8 10 $5.15
4 00540917700 differential bolt 1 $86.97
5 02B409170A thrust washer 1 - CWA/DVY/EFD
(5) 02B409170A thrust washer 1 - GDW/GFW
6 N10072601 roll pin 5 x 36 1 $1.12
7 012409413 circlip 2 $1.55
8 012409131H lid 1 $717.89 CWA
8 012409131H lid g >> 10 01 9 1 $717.89 DVY
(8) 012409131L lid g 11 01 9 >> 1 $423.34 DVY/EFD/GDW
(8) 012409131L lid 1 $423.34 GFW
9 002517185 taper roller bearing 46 x 75 x 18 2 $19.78 CWA
9 002517185M taper roller bearing 46 x 75 x 18 g >> 10 01 9 2 $82.42 DVY
9 002517185M taper roller bearing right 46 x 75 x 18 g 11 01 9 >> 1 $82.42 DVY/EFD/GDW
9 002517185M taper roller bearing right 46 x 75 x 18 1 $82.42 GFW
9 01X409123 taper roller bearing left 50 x 80 x 20 g 11 01 9 >> 1 $93.51 DVY/EFD/GDW
9 01X409123 taper roller bearing left 50 x 80 x 20 1 $93.51 GFW
10 012409387 shim 0,45 X $4.42 CWA
10 012409387 shim 0,45 g >> 10 01 9 X $4.42 DVY
10 012409387DM shim X $4.42 DVY/EFD/GDW
left 0,45 g 11 01 9 >> - GFW
10 012409387AK shim X $4.42 DVY/EFD/GDW
right 0,45 g 11 01 9 >> - GFW
(10) 012409387A shim 0,50 X $5.71 CWA
(10) 012409387A shim 0,50 g >> 10 01 9 X $5.71 DVY
(10) 012409387DN shim X $4.42 DVY/EFD/GDW
left 0,49 g 11 01 9 >> - GFW
(10) 012409387AL shim X $4.42 DVY/EFD/GDW
right 0,49 g 11 01 9 >> - GFW
(10) 012409387B shim 0,55 X $4.96 CWA
(10) 012409387B shim 0,55 g >> 10 01 9 X $4.96 DVY
(10) 012409387DP shim X $4.42 DVY/EFD/GDW
left 0,53 g 11 01 9 >> - GFW
(10) 012409387AM shim X $4.42 DVY/EFD/GDW
right 0,53 g 11 01 9 >> - GFW
(10) 012409387C shim 0,60 X $3.01 CWA
(10) 012409387C shim 0,60 g >> 10 01 9 X $3.01 DVY
(10) 012409387DQ shim X $4.42 DVY/EFD/GDW
left 0,57 g 11 01 9 >> - GFW
(10) 012409387AN shim X $4.42 DVY/EFD/GDW
right 0,57 g 11 01 9 >> - GFW
(10) 012409387D shim 0,65 X $3.69 CWA
(10) 012409387D shim 0,65 g >> 10 01 9 X $3.69 DVY
(10) 012409387DR shim X $4.42 DVY/EFD/GDW
left 0,61 g 11 01 9 >> - GFW
(10) 012409387AP shim X $4.42 DVY/EFD/GDW
right 0,61 g 11 01 9 >> - GFW
(10) 012409387E shim 0,70 X $2.16 CWA
(10) 012409387E shim 0,70 g >> 10 01 9 X $2.16 DVY
(10) 012409387DS shim X $4.42 DVY/EFD/GDW
left 0,65 g 11 01 9 >> - GFW
(10) 012409387AQ shim X $4.42 DVY/EFD/GDW
right 0,65 g 11 01 9 >> - GFW
(10) 012409387F shim 0,75 X $3.01 CWA
(10) 012409387F shim 0,75 g >> 10 01 9 X $3.01 DVY
(10) 012409387DT shim X $4.42 DVY/EFD/GDW
left 0,69 g 11 01 9 >> - GFW
(10) 012409387AR shim X $4.42 DVY/EFD/GDW
right 0,69 g 11 01 9 >> - GFW
(10) 012409387G shim 0,80 X $3.01 CWA
(10) 012409387G shim 0,80 g >> 10 01 9 X $3.01 DVY
(10) 012409387EA shim X $4.42 DVY/EFD/GDW
left 0,73 g 11 01 9 >> - GFW
(10) 012409387AS shim X $4.42 DVY/EFD/GDW
right 0,73 g 11 01 9 >> - GFW
(10) 012409387H shim 0,85 X $3.29 CWA
(10) 012409387H shim 0,85 g >> 10 01 9 X $3.29 DVY
(10) 012409387EB shim X $9.68 DVY/EFD/GDW
left 0,77 g 11 01 9 >> - GFW
(10) 012409387AT shim X $4.42 DVY/EFD/GDW
right 0,77 g 11 01 9 >> - GFW
(10) 012409387J shim 0,90 X $3.07 CWA
(10) 012409387J shim 0,90 g >> 10 01 9 X $3.07 DVY
(10) 012409387EC shim X $4.42 DVY/EFD/GDW
left 0,81 g 11 01 9 >> - GFW
(10) 012409387BA shim X $4.42 DVY/EFD/GDW
right 0,81 g 11 01 9 >> - GFW
(10) 012409387ED shim X $4.42 DVY/EFD/GDW
left 0,85 g 11 01 9 >> - GFW
(10) 012409387BB shim X $4.42 DVY/EFD/GDW
right 0,85 g 11 01 9 >> - GFW
11 02M498081A differential pinions 1 $448.03 CWA/DVY/EFD
1 set - GDW
(11) 01X498081 differential pinions 1 set 1 $387.82 GFW
12 WHT001937 screw plug m 24 x 1,5(UP TO YEAR 02) 1 $10.21
(12) WHT001937 screw plug m 24 x 1,5(FROM YEAR 03 UP) 1 $10.21
13 016409399B radial shaft seal 45 x 60 x 8 2 $5.00
14 N90366001 torx screw m 8 x 36 10 -
15 012409343K flanged shaft f >>983s6 20135 f >>983u6 24238 2 $474.23 CWA/DVY/EFD
(15) 012409343AA flanged shaft f 983s6 20136>> f 983u6 24239>> 2 $457.73 CWA/DVY/EFD
(15) 012409343AC flanged shaft 2 $490.60 GDW/GFW
16 012409182C drive wheel without function-drive(UP TO YEAR 02) 1 $37.42
(16) 012409182C drive wheel without function-drive(FROM YEAR 03 UP) 1 $37.42
17 012409191D sensor without function-drive(UP TO YEAR 99) 1 $21.11
(17) 012409191D sensor without function-drive g >> 28 06(FROM YEAR 00 UP) 1 $21.11
(17) 012409961 stopper g 01 07 2 >> 1 $14.08
18 N90368401 round seal 14,5 x 2 1 $4.93
