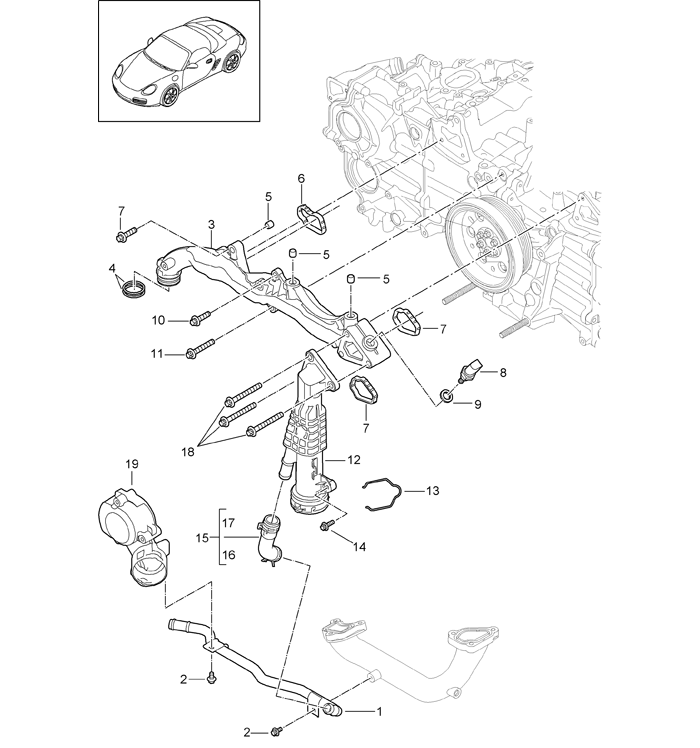

MA1.20, MA1.21 unit carrier water tube

POS Part Number Description Qty. Needed Price Model/Option Info
1 9A110681031 heater pipeline supply 1 $61.41
2 90038504101 torx screw m6 x 12 2 -
3 9A110201202 unit carrier 1 -
4 99970758940 o-ring 31,0 x 3,0 2 $6.00
5 99909506303 dowel sleeve 11 m6 x 10 3 $5.71
6 9A110231200 gasket cyl. 1 - 3 1 $17.00
7 9A110232200 gasket cyl. 4 - 6 2 $14.50
8 99760642001 temperature sensor 1 $36.47
9 90012311121 sealing ring copper 1 $1.55
10 90038504201 torx screw m8 x 35 3 -
11 90038507101 torx screw m8 x 50 2 -
12 9A110613201 connection piece 1 $41.54
13 99710680203 spring 1 -
14 90038507201 torx screw m6 x 25 1 -
15 9A110666031 water hose supply 1 $19.59
16 99951260109 hose clamp 23 x 12 1 $2.45
17 99951265709 hose clamp 26 x 12 1 -
18 90038511501 torx screw m8 x 70 3 -
19 housing thermostat see group 1/05/00 1 -
