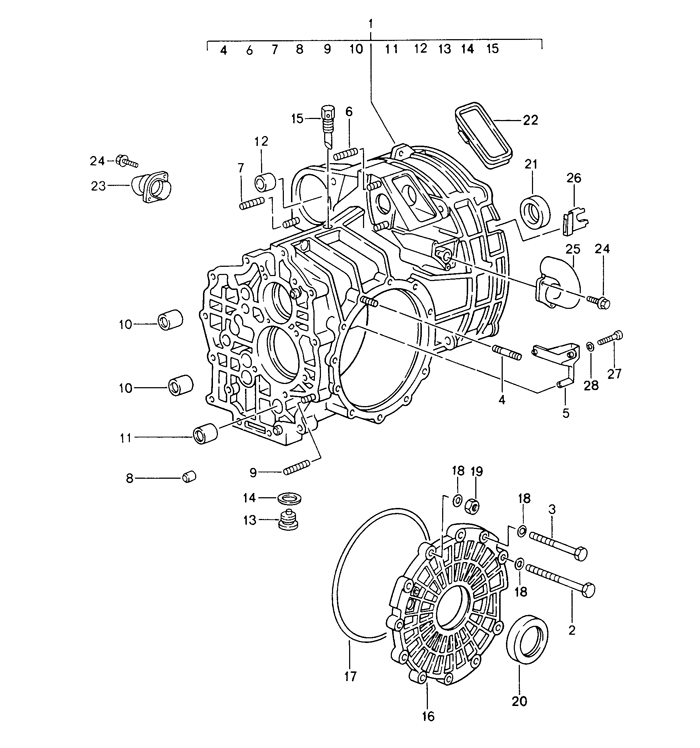

G64.51 replacement transmission ready for installation transmission case

POS Part Number Description Qty. Needed Price Model/Option Info
- 96430002051 transmission with limited-slip differential 1 $10,161.80 G64.51
1 96430101055 transmission case 1 $2,763.36 G64.51
2 90007417002 hexagon-head bolt m 8 x 67 1 -
3 90007503303 hexagon-head bolt m 8 x 40 10 $3.27
4 99906205202 stud m 8 x 42 1 -
5 96430710700 funnel 1 $34.28
6 99906200802 stud m 8 x 25 2 $3.30
7 99906211802 stud m 10 x 28 1 $10.02
8 90001214400 straight pin 12 m 6 x 14 3 $4.14
9 99906200602 stud bm 8 x 20 1 $1.65
10 99920300300 bearing sleeve 16 x 22 x 20 4 $19.76
11 99920300410 round socket 16 x 22 x 27 1 $104.12
12 99953101710 bush 1 $16.52
13 99906300802 screw plug with magnet m 22 x 1,5 1 $21.25
14 90012311830 sealing ring a 22 x 27 1 $1.00
15 95030107100 bleeder 1 -
16 95030131252 transmission cover 1 -
17 99970732840 o-ring 205 x 3,5 1 $24.00
18 90002500703 washer a 8,4 12 $0.79
19 90007606402 hexagon nut m 8 1 $1.00
20 99911334740 shaft sealing ring 48 x 68 x 10 2 $28.60
21 99911332641 shaft sealing ring 26,5 x 40 1 $16.56
22 95030115101 cap 1 $17.78
23 99311606301 connection piece 1 $88.00
24 90007543102 hexagon-head bolt m 6 x 20 z1 5 $1.24
25 99311606100 intake manifold 1 -
26 99311663000 cap 1 $5.21
27 90006700503 pan-head screw m 5 x 30 2 $1.72
28 90002500302 washer a 5,3 2 -
