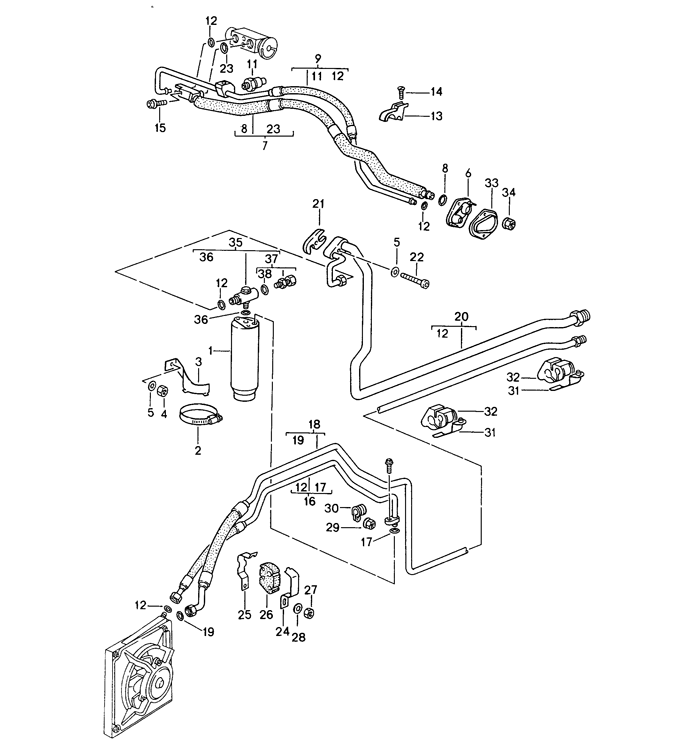

refrigerant circuit front

POS Part Number Description Qty. Needed Price Model/Option Info
1 94457314301 desiccator 1 $10.49
2 99951239000 hose clamp 60-80 mm 1 $2.54
3 96457345101 support 1 $29.15
4 90091004709 lock nut m 6 1 $1.00
5 N0115247 washer a 6,4 1 $1.10
5 N01152427 washer a 6,4 1 $1.00
6 96457355300 rubber boot for 2 $7.74
7 99357309101 intake pipe expansion valve wheel housing(UP TO YEAR 94) 1 -
7 99357309101 intake pipe expansion valve wheel housing(FROM YEAR 95 UP) 1 -
8 99970753441 o-ring 17 x 2 1 $1.00
9 99357310300 pressure line nw 8 wheel housing expansion valve 1 -
11 96461313701 pressure switch 1 $87.52
12 99970724740 o-ring 7,5 x 2 4 $1.00
13 99357346700 retaining clip 1 $5.60
14 90014315102 combination screw 4,2x16 1 -
15 90007534702 combination screw m 6 x 30 1 $1.76
16 99357309300 pressure line desiccator wheel housing 1 $556.61
17 99970726240 o-ring 6,7 x 1,8 1 $9.59
18 99357310702 refrigerant line door sill condenser 1 -
19 99970743441 o-ring 10,6 x 2 1 $1.00
20 99357309202 intake pipe wheel housing door sill 1 $360.86
21 96457373102 flange 1 $45.66
22 90006701302 pan-head screw m 6 x 35 m 6 x 35 1 -
23 99970725140 o-ring 14 x 2 1 $1.00
24 96457346300 support upper part 1 $15.33
25 96457345300 support lower part 1 $15.33
26 96457345500 spacer rubber 1 $23.50
27 90007606402 hexagon nut m 8 1 $1.00
28 90002500703 washer a 8,4 x 16 x 1,6 1 $0.79
29 99950107440 plastic nut t 5 pom 1 $2.00
30 N0206201 clamp b 13 x 15 1 $4.69
31 99320730300 clamp 2 $3.54
32 99357346302 rubber mounting(UP TO YEAR 95) 2 $27.17
32 99357346302 rubber mounting(FROM YEAR 96 UP) 2 $27.17
33 96457356500 lid 1 $20.31
34 99950107440 plastic nut t 5 pom 2 $2.00
35 99757324300 distributing piece 1 $172.69
36 99970726240 o-ring 6,7 x 1,8 1 $9.59
37 92857331100 relief valve 1 $53.74
38 99970726140 o-ring 9 x 1,8 1 $1.00
