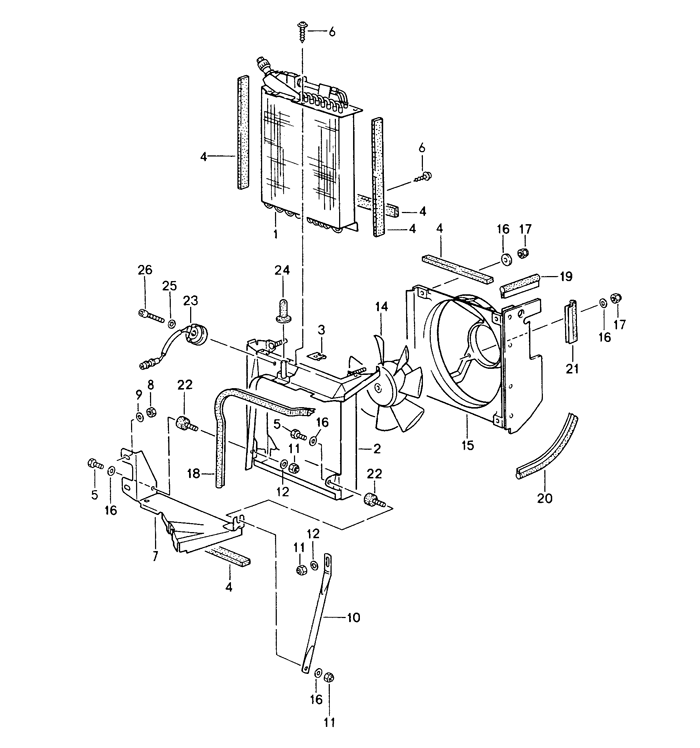

condenser blower front

POS	Part Number	Description	Qty. Needed	Price
(1)	99357301102	condenser	1	$108.30
2	99357324100	retaining frame(FROM YEAR 92 UP)	1	$421.75
3	99959171302	speed nut b 4,2	3	-
-	00004320488	sealing strap roll with 10 meters 9 x 3 280 mm	*	$48.38
5	N0102085	hexagon-head bolt m 6 x 8	2	-
6	90014311702	combination tapping screw b 4,2 x 9,5	4	$3.15
7	96457330100	bracket condenser	1	$66.26
8	90091002202	lock nut v m 8	3	$1.00
9	90015100802	washer b 8,4 b 8,4	3	$1.00
10	99350413900	tension strut	1	$22.62
11	90091001009	lock nut m 6	2	-
12	90015100603	washer b 6,4	2	$1.00
14	96462403501	blower	1	$172.50
15	99362403100	air-guide cowl	1	$190.30
16	N0115247	washer a 6,4	3	$1.10
16	N01152427	washer a 6,4	3	$1.00
17	N02214812	hexagon nut m 6	3	$1.74
17	9000760100B	hexagon nut m 6	3	$1.06
(()	99991139840	edge protection	*	$40.07
18		557 mm		-
19		180 mm	1	-
20		425 mm	1	-
21		90 mm	1	-
22	99970336500	bonded rubber buffer 25 x 15	2	$14.76
23	99361652101	ballast resistor(UP TO YEAR 94)	1	$84.00
23	99361652101	series resistor(FROM YEAR 95 UP)	1	$84.00
23	99361652101	ballast resistor(FROM YEAR 95 UP)	1	$84.00
24	94457345700	rubber sleeve	1	$13.40
25	N0115562	washer 5,3	1	$1.00
26	90006712501	pan-head screw m 5 x 20	1	$1.90
