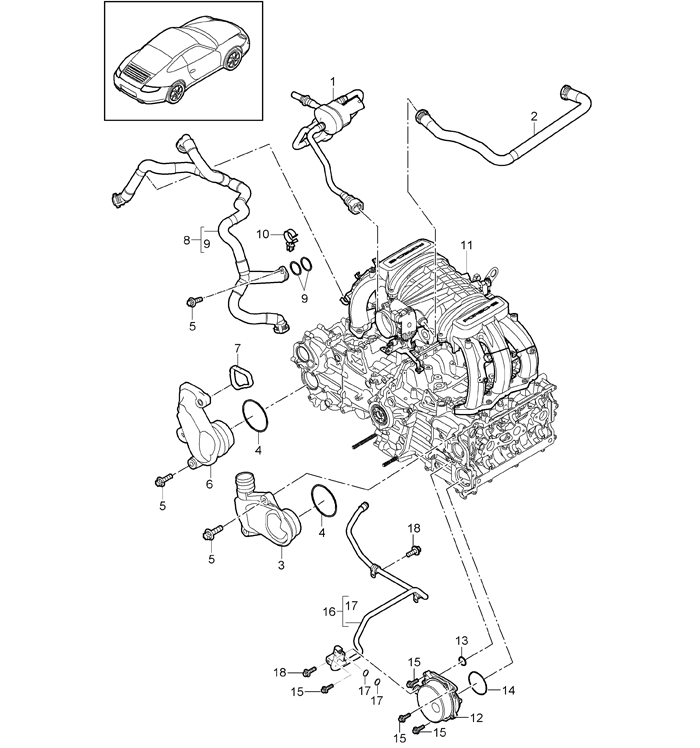

crankcase bleeding tank ventilation vacuum pump

POS	Part Number	Description	Qty. Needed	Price	Model/Option Info
1	9A111009102	vent line complete	1	$151.05
(1)	9A111009140	vent line	1	-	MA1.01
		complete kit		-	IX51
2	9A110751001	vent line distributor tube	1	$124.69
3	9A110503800	lid crankcase bleeding cyl. 4 - 6	1	-
4	99970763640	o-ring 44,0 x 3,5n	2	$3.95
5	90038501901	torx screw bm6 x 20	6	-
6	9A110503900	lid crankcase bleeding cyl. 1 - 3	1	$63.31
7	9A110533900	gasket for lid crankcase	1	$16.85
8	9A110750501	vent line crankcase	1	-
(8)	9A110750540	vent line	1	$272.30	MA1.01
		crankcase kit		-	IX51
9	99970763940	o-ring	2	$7.59
10	99950786740	support	1	$6.25
11	9A110750640	vent line	1	$138.47	MA1.01
		cyl. 1 - 3 kit		-	IX51
12	9A111009005	vacuum pump	1	-
13	99970150440	o-ring 10 x 2,5	1	$7.40
14	99970150540	o-ring 54 x 2,5	1	$12.82
15	90038501901	torx screw m6 x 20	3	-
16	9A111005504	vacuum line	1	$132.80
17	99970178940	o-ring 12 x 2	2	$1.00
18	90038504101	torx screw m6 x 12	4	-
