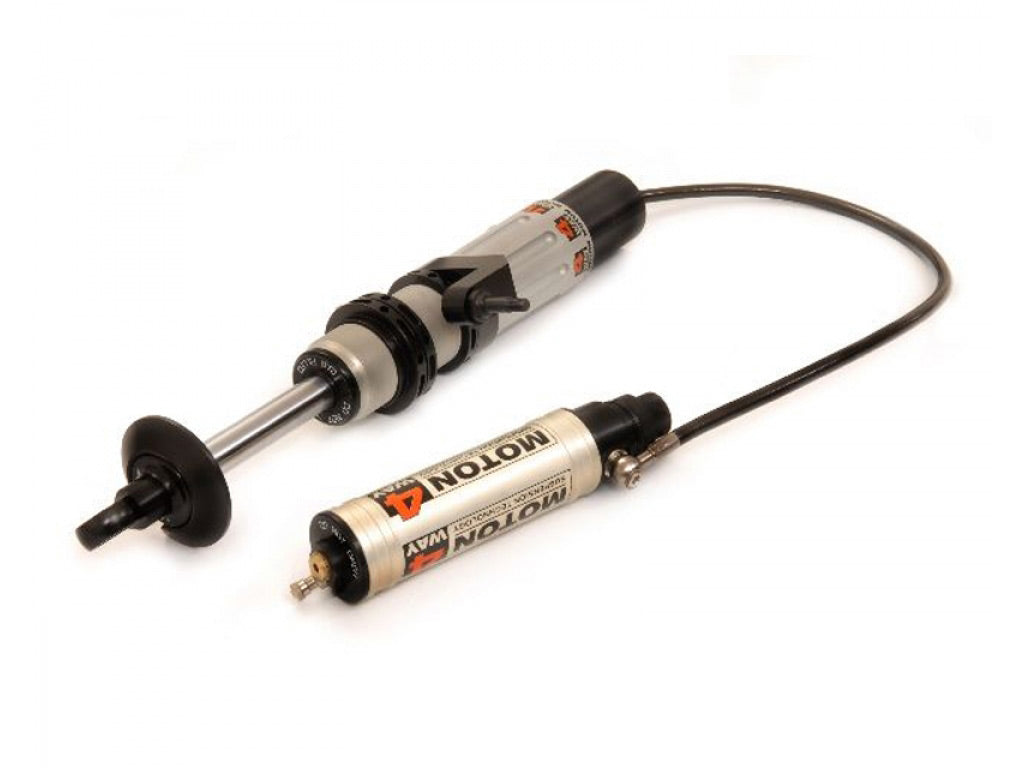

Moton 4 Way Damper System

The 4-Way adjustable Motorsport damper has been developed over the last few years in conjunction with many professional racing teams all over the World. After winning the FIA European Touring Car Championship (ETCC in 2004 with our Triple adjustable damper, we designed and developed this unique 4-Way damper with Andy Priaulx's Team in preparation of the 2005 FIA World Touring Car Championship (WTCC. The rest is history and the 2005, 2006 and 2007 FIA WTCC title was clinched by Andy Priaulx running the Moton 4-Way damper system. _x000B_ _x000B_The 4-Way adjustable Motorsport damper is available as a McPherson Strut in either Aluminum or Steel or as a Aluminum Coil-over damper. It can be custom built to your specifications. The Moton 4-Way damper features separate low- and high speed bump and rebound control. The 2 rebound adjusters are located on top of the piston rod and adjust completely independably from each other. Both low- and high speed rebound do have a adjustment range of 20 clicks each. The 2 bump adjusters are located on top of the reservoir, the low speed bump can be adjusted into 6 different settings by turning the small knob on top of the reservoir. The high speed bump can be adjusted into 15 different settings by turning the large knob on top of the reservoir. _x000B_ _x000B_The 4-Way damper is featuring a unique double piston design. The primary large main piston does have a double non preloaded valve stack on it for bump and rebound control and is designed for quick response during the smallest movement of the piston. The secondary piston is designed with the use of a unique blow off valve system for high speed rebound control. The low speed rebound is controlled by adjusting an internal needle valve. _x000B_ _x000B_ _x000B_Features: _x000B_ _x000B_All Moton sets come with spring hardware, mounting bushings and camberplates.
